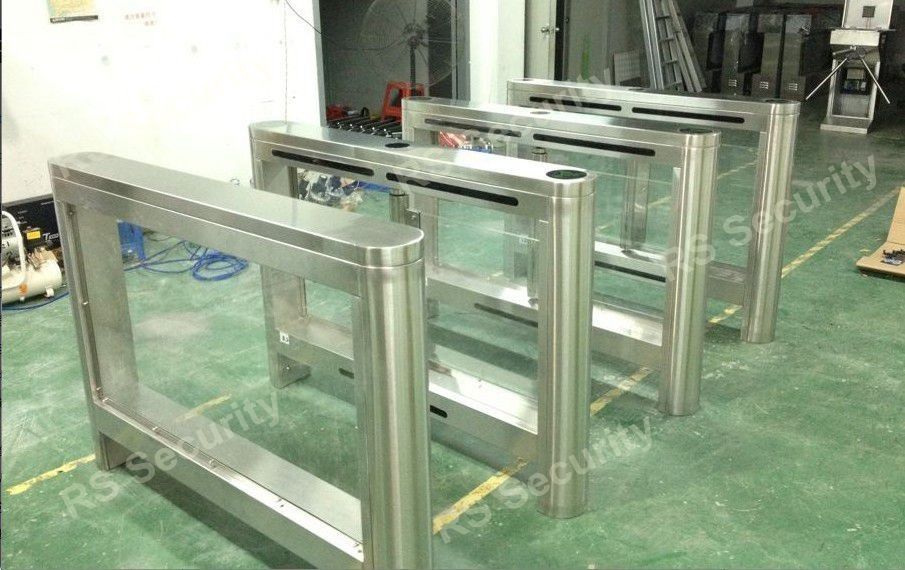

High Security Swing Barrier Gate Waterproof RIFD Smart Turnstile System
⇒Slim Glass Arm Swing Turnstiles RS 716-2 with innovate design, it extensive use in metro, school,
office,scenic, gym, factory, residential, supermarket etc.. It can support RFID, fingerprint, facial verification
mode.Combine with infrared detector, temperature controller, can widely used in all kind of different
environment.
⇒Slim Glass Arm Swing Turnstiles RS 716-2 can option the crashproof function, turnstile integrated angle
coder and clutch, can protect the door while people or bicycle crash it.
| Echnical Parameters |
| Dimensions |
1600*130*1050mm |
| Stainless thickness |
standard 1.5mm, Can thicken; |
| Turnstile components |
cabinet, arm, movement, controller, encoder, electromagnetic brake, glass panel; |
| Swing arm length |
300-600mm; |
| Transmission arm angle |
180 degree; |
| Swing direction |
One-way or two-way; |
| Power |
Single movement 50W,double movement 100W |
| Operating Voltage |
AC220 ±10% V/50 ±10% HZ; |
| Motor |
DC motor 40W/24V; |
| Normal life |
500 million times; |
| Gate opening time |
0.2 seconds; |
| Input interface |
dry contact signal or 12V level signal; |
| Communication interface |
RS485 or TCP / IP; |
| Pass speed |
40 / min (normally open), 25-30 / min (Normally Closed); |
Features
1.Equipped with standard input/output signal interface, can be integrated with all types of access control
panel, offering complete entrance control solutions.
2. Bi-directional passing or single way passing. 3.Equipped with LED directional indication / status lights.
4.The equipment's running state can be programmed by the built-in small visual panel on the master
control board.
5.In the case of power failure, the rotating arms open automatically to ensure unblocked access.
6.Mechanical structure can prevent operators from being clamped or wounded. As a rotating arm is
blocked in the process of reset, the motor will stop working within the specified time. The arm will reset
again (until it is reset) after defaulted time delay and the strength is small (≤2Kg).
7.Rotating arm is locked automatically before receiving an opening signal.
8. Automatic reset: if a person fails to pass within the specified time after the turnstile is opened, the
system will cancel authorization of this access automatically;
9.Highly durable design ensures the life span more than 5 million cycles.
