Place of Origin: | china |
Brand Name: | TDZ |
Certification: | CE |
Model Number: | TDZ - B234 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD 800 - 1500 / Piece |
Packaging Details: | paper carton/wooden case |
Delivery Time: | 5-7 working days after ordered |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 2000 pieces / month |
Size: | 1400*190*1000mm | Passing Speed: | < 40 Person/min |
---|---|---|---|
Swing Direction:: | One-way Or Two-way | Package: | Wooden Caes |
Lane Width: | 550mm (Max:900mm) | Warranty: | 12 Months |
High Light: | Turnstile Door,Swing Gate Turnstile |

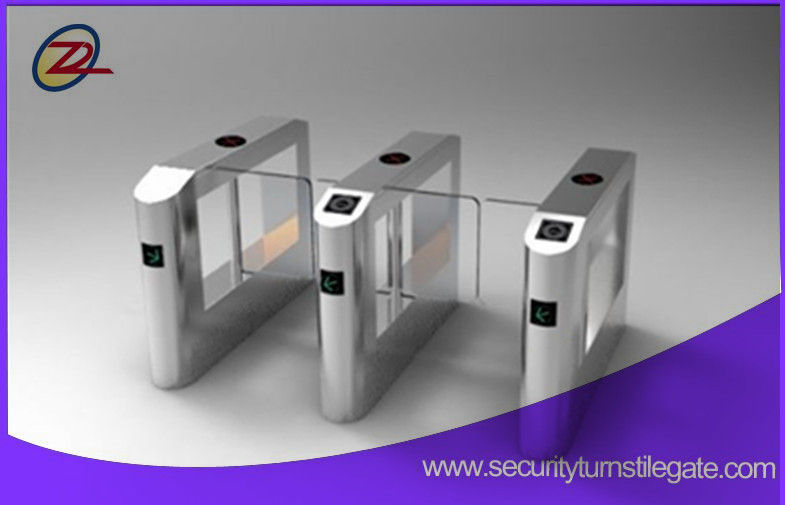

Stainless Steel Gate Swing Barrier Access Control For Bank Entrance
Tehcnical Parameters:
Dimension | 1200*200*1000mm |
Stainless Steel Specification | Body: SS304 |
Brake rod length | 600-900 mm |
Power Supply | AC110V±10V,60Hz / AC220V±10V,50Hz |
Drive motor |
Brushless DC motor 24V |
Communication interface |
RS485 electrical standard or TCP/IP |
Passing Speed |
40 persons/min (normal open) 30 persons/min (normal close) |
Response Time | 1s |
Input Interface | +12V electrical signal or DC impulse signal with width >100ms |
Communication Interface | RS485/relay signal |
Operating Temperature | -15°C ~ 50°C |
Related Humility | <=95% |
Package | Paper Carton/Wooden Box |
Functions and features:
1. Designed reasonable and reliable movement, noise, smooth running, and long service life.
2. Access Prompt function:Red and green light prompt the passing information.
3. The programmable gates control state, with a variety of operating modes you can choose, you
can set a one-way or two-way control
4. Installation with personalized interface, compatible with IC, ID cards and other smart cards.
5. The main control panel built small button, the device can be set to run state
6. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a
predetermined time, click stop working automatically, the default reset again after a delay, and the intensity is
very small(2kg)
7. Scour protection function ,when the gate signal is not received, the stick is automatically locked
8. With automatic reset function,namely to obtain permission lock after the set time.There is no lock,
swing gates automatic cancellation of this authority back to the initial state.
9. Normally open or closed can be freely adjusted to meet different venue requirements
10. Can be mounted with a variety of reading devices, the receiver relay switch signal
Single ,bi-directional swing function, one-way or two-way control personnel access
11. Directly through the management computer for remote control and management, auto-reset delay
automatic reset,the system default is 10 seconds after opening (adjustable)
12. Power failure emergency function after power channel automatically open, closed automatically
after power-on,to meet the special needs of the user and the fire safety requirements .
Package Details Picture
