Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | china |
| Brand Name: | TDZ |
| Certification: | CE |
| Model Number: | TDZ - B119-2 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 600 - 1200 / Piece |
| Packaging Details: | paper carton/wooden case |
| Delivery Time: | 5-7 working days after ordered |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 2000 pieces / month |
| Opening Pattern: | Automatic | Size: | 1200*280*1000mm |
|---|---|---|---|
| Thick Of Steel: | 1.5mm | Material: | 304stainless Steel |
| Passing Speed: | < 40 Person/min | Arm Rotation Angle: | 180 |
| Power Supply Voltage: | AC220 ± 10%V, 50HZ | Swing Direction:: | One-way Or Two-way |
| Communication Interface: | RS485 Electrical Standard Or TCP/IP | Working Environment: | Indoor And Outdoor With Shed |
| High Light: | Turnstile Door,Pedestrian Barrier Gate |
||

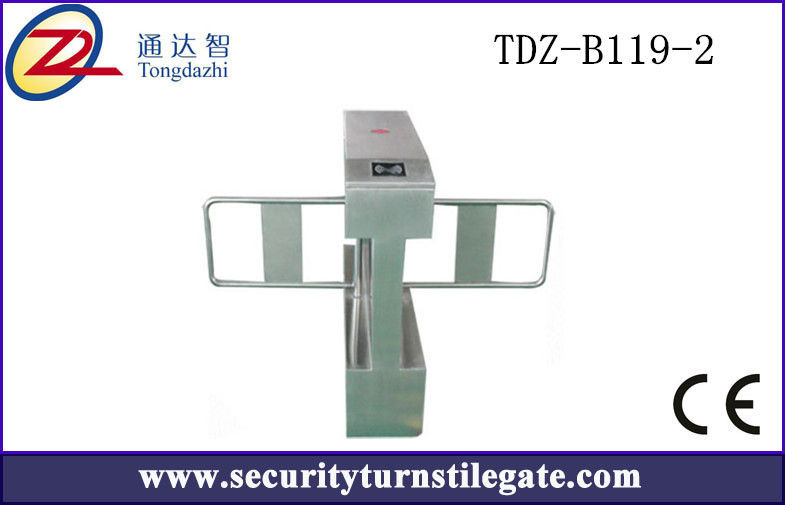

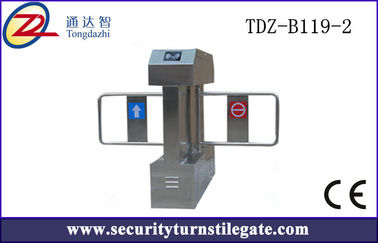

OEM Pedestrian Automatic Swing Barrier Gate with RFID access control reader
Quick Details
|
|
|
|
|
|
|
|
|
|
|
|
| Framework | 304(standard)/316 grade stainless steel |
| Dimensions | |
| Bridge turnstile:1200*280*1000mm | |
| Arm rotation angle | 180 |
| Operating Mode | one-way or two way control |
| Power supply voltage | AC220 ± 10%V, 50HZ |
| Interface | standard RS485/distance≤1200m or TCP/IP. |
| Gate opening time | 0.2 second |
| Transit speed | 30-40 persons per minute |
| Working environment | indoor or outdoor |
| Temperature | -10 Celsius to 50 Celsius |
| Relative humidity | :≤90% no condensation |
|
|
|
| 1. Available in single walkway or bi-directional passage.Both directions can be set as controlled mode or free mode. | |
|
2.Self-recovery function:the machine will recovery automatically with invalid counting if passage is not completed within pre-set time(5 seconds default,adjustable by software). |
|
|
3.Multi-alarm function:When arms are pushed by force illegally,alarm will be triggered automatically and the center rotor will be set locked(the duration of the alarm and lock is adjustable by software). |
|
|
4. Emergency escape function:the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not. |
|
| 5.Smart card reader compatible with a variety of card such as IC and ID card. | |
|
6.Can be expanded to automatic identification system,realizing function to access control, |
|
|
7.Equipped with international standard electrical interface,can be easily integrated with other R/W device,also can be controlled and management through remote supervision computer. |
|
| 8.Control panel with count and LED digital function. | |
| 9.Optional traffic-light: A Red Cross symbol will illuminate to indicate unit is not available for pass, and a green arrow indicate the direction of allowable pass. | |
Our service
Visit our factory free.
Reply your inquiry in 24 working hours.
Professional staff answer your questions in English.
Customized design is available,we can accept OEM & ODM.
Unique problems can be made solution by our professional engineers.
Special discount and protection of our distributors or agents in their area.
