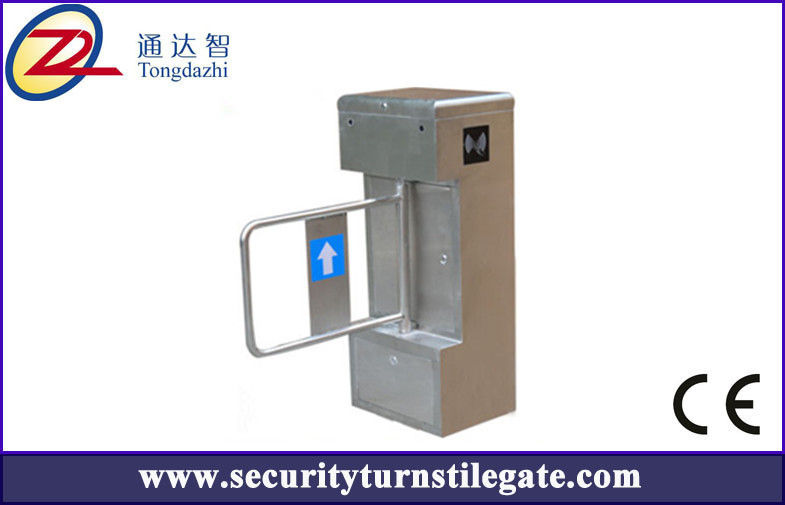

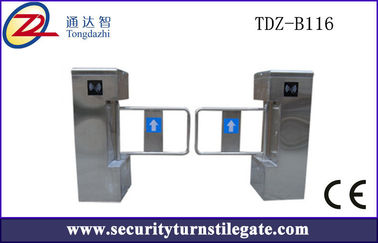

Stainless Steel Swing Barrier Gate Access Control Turnstile System
Quick Details
- Size:420*330*1000mm
- material and color are optinal
- Material:304stainless steel
- turnstile manufacturer,factory price
- OEM welcome
Product Description
The turnstile has the ability to control access smoothly and effectively.The machine is well in design, rustproof, durable and can resist external destroy.
Swing turnstile can be divided into fully automatic swing turnstile and manual swing. Fully automatic product can finish any work by power. The swing arm will automatically open when it is powered off. And the arm will automatically be closed when power is turned on again.
Manual swing has no controller, Do not have any related to electrical parts .
Technical Parameters
|
Structure
|
frame structure/standard stainless steel shell
|
|
Production
|
full CNC laser cutting machine production
|
|
Gate opening time
|
0.2 seconds
|
|
Power
|
50W
|
|
Drive motor
|
brushless DC motor (24V)
|
|
Working life
|
3,000,000
|
|
LED indicator
|
1
|
|
Reader windows
|
2
|
|
Power on state required time
|
3 seconds
|
|
Failure automatically reset time
|
10 seconds
|
|
Working environment
|
indoor, outdoor (with shed)
|
| Interface |
standard RS485/distance≤1200m or TCP/IP. |
|
Operation Place
|
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control
|
Functions& Features
1. Designed reasonable and reliable movement, noise, smooth running, and long service life.
2. Access Prompt function:Red and green light prompt the passing information.
3. The programmable gates control state, with a variety of operating modes you can choose,
you can set a one-way or two-way control
4. Installation with personalized interface, compatible with IC, ID cards and other smart cards.
5. The main control panel built small button, the device can be set to run state
6. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a
predetermined time, click stop working automatically, the default reset again after a delay,
and the intensity is very small(2kg)
7. Scour protection function ,when the gate signal is not received, the stick is automatically locked
8. With automatic reset function,namely to obtain permission lock after the set time.There is no lock,
swing gates automatic cancellation of this authority back to the initial state.
9. Normally open or closed can be freely adjusted to meet different venue requirements
10. Can be mounted with a variety of reading devices, the receiver relay switch signal
11. Single ,bi-directional swing function, one-way or two-way control personnel access
12. Directly through the management computer for remote control and management, auto-reset delay
automatic reset, the system default is 10 seconds after opening (adjustable)
13. Power failure emergency function after power channel automatically open, closed automatically
after power-on, to meet the special needs of the user and the fire safety requirements
