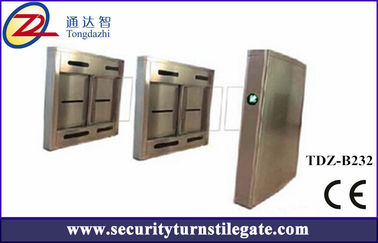

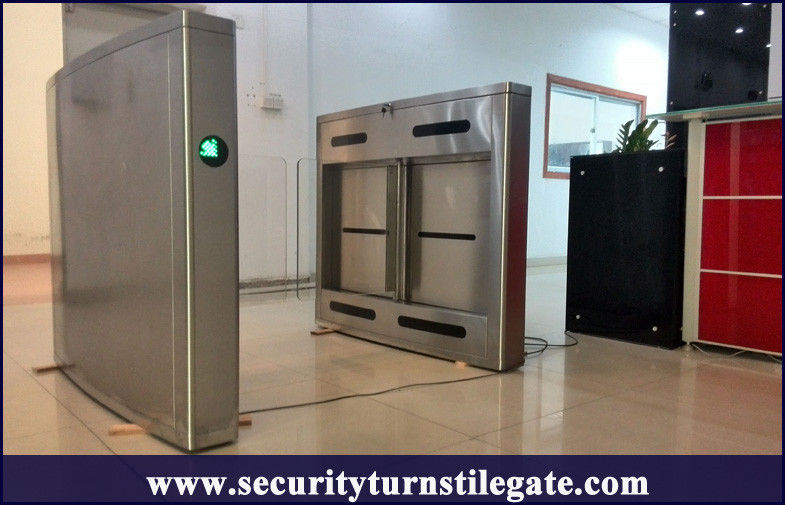

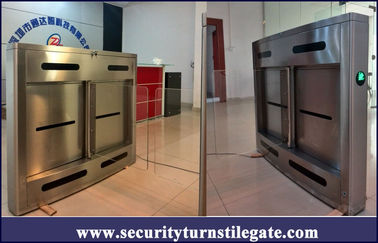

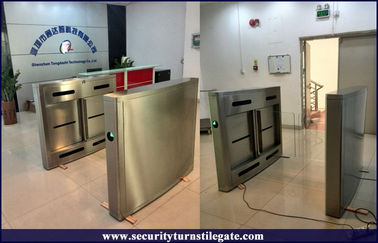

Automatic Subway Turnstile swing barrier gate for wheelchairs , 316 stainless steel

Product Details:

Place of Origin:	China
Brand Name:	TDZ
Certification:	CE
Model Number:	TDZ-B232

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD 500 -1000 / Piece
Packaging Details:	paper carton and wooden cases
Delivery Time:	3-4 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability:	200 pieces / month

Contact Now

Detailed Product Description

Material:	304 / 316 Stainless Steel	Thickness:	1.5mm
Dimension:	12002201100mm	Channel Width:	600 -900 Mm
Machine Core:	Fully Automatic	Motor:	Brushless DC Motor (24V)
Power Supply:	AC 220 ± 10%V,50Hz	Normal Life:	3,000,000 Times
High Light:	Turnstile Door , Pedestrian Barrier Gate

Automatic Subway Turnstile swing barrier gate for wheelchairs , 316 stainless steel

Quick Details

Handicap lane automatic swing turnstile with building management system
Channel width:600-900mm
3 pairs of infrared sensor
Control panel with counting function,LED display function (optional).
Can use with RFID,Mifare,fingerprint,bar code,facial scanner,etc access control products

Product Descriptions:

Waterproof, sunscreen, anti-temperature, anti-cold.
Access Prompt function:Red and green light prompt the passing information.
Can set a one-way or two-way control
Compatible IC, ID, magnetic card, bar code card, and other control equipment.
Small button into the main control panel ,can be set state of equipment.
Anti-pinch, anti bumps function
Scour protection function ,when the gate signal is not received, arms keep closed
With automatic reset function,if does not pass in the set time,turnstile will get back
Normally open or closed can be freely adjusted
can be used with a variety of reading devices, work when it receive relay switch signal
Fire emergency function,after power,arms will be automaticlly opened.When on power,will be closed automatically

Main Features
Framework	304(standard)/316 grade stainless steel
Size	12002201100mm
Channel Width	600—900mm
Weight	130kg.
Operating Mode	one-way or two way control
Power supply voltage	AC220 ± 10%V, 50HZ
Interface	standard RS485/distance≤1200m or TCP/IP.
Gate opening time	0.2 second
Transit speed	30-40 persons per minute
Working environment	indoor or outdoor
Temperature	-10 Celsius to 50 Celsius
Relative humidity	:≤90% no condensation
Main Features&Function
1. Available in single walkway or bi-directional passage.Both directions can be set as controlled mode or free mode.
2.Self-recovery function:the machine will recovery automatically with invalid counting if passage is not completed within pre-set time(5 seconds default,adjustable by software).
3.Multi-alarm function:When arms are pushed by force illegally,alarm will be triggered automatically and the center rotor will be set locked(the duration of the alarm and lock is adjustable by software).
4. Emergency escape function:the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
5.Smart card reader compatible with a variety of card such as IC and ID card.
6.Can be expanded to automatic identification system,realizing function to access control, pedestrian flow control,attendance check or fare collection.
7.Equipped with international standard electrical interface,can be easily integrated with other R/W device,also can be controlled and management through remote supervision computer.
8.Control panel with count and LED digital function.
9.Optional traffic-light: A Red Cross symbol will illuminate to indicate unit is not available for pass, and a green arrow indicate the direction of allowable pass.
