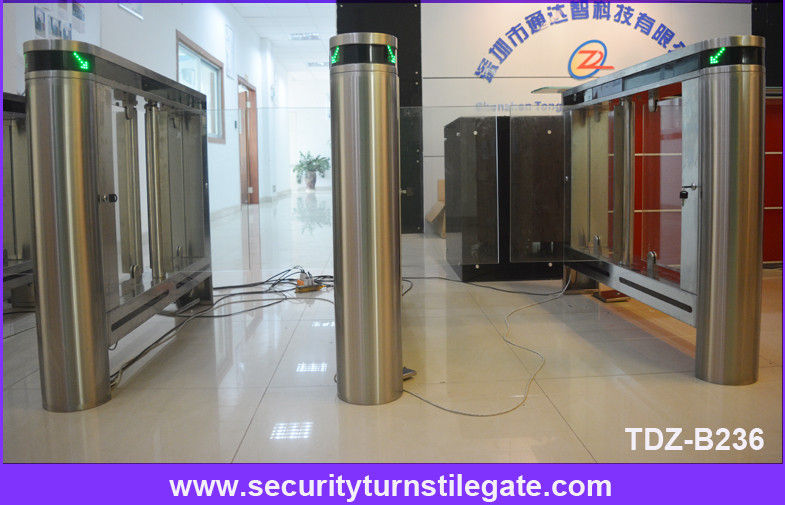

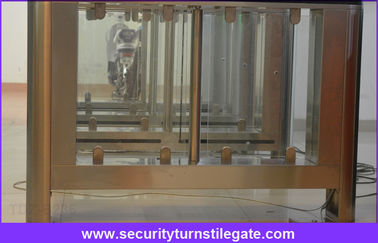

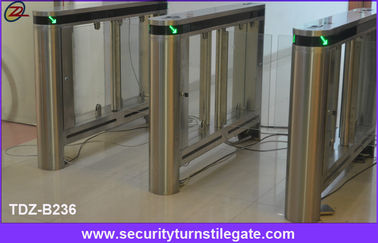

Stainless Steel swing barrier gate High end WIth remote control

Product Details:

Place of Origin:	China
Brand Name:	TDZ
Certification:	CE
Model Number:	TDZ-B236

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD 500 -2000 / Piece
Packaging Details:	paper carton and wooden cases
Delivery Time:	3-4 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability:	200 pieces / month

Contact Now

Detailed Product Description

Thickness:	1.5mm	Material:	304 / 316 Stainless Steel
Dimension:	14001901000mm	Normal Channel:	600-650mm
Swing Material:	Tempered Glass	Handicap Lane:	800-900mm
Fire Safty Function:	Yes
High Light:	Turnstile Door , Pedestrian Barrier Gate

Stainless Steel Speed Gates High End Barrier Gate System With Remote Control

Stainless Steel Speed Gate High End Swing Barrier Gate with Remote Control

Technical Parameters

Material	304/316 stainless seel (optional)
Fishing	Brushed surface (standard) / Polishing surface
Dimension	14001901000mm
Swing arm length	600 - 900mm
Drive motor	Brushless DC motor (24V)
Power supply	AC220 (110) ± 10%V,50Hz
Working life	3,000,000 times
Communication Interface	RS485 / RS232,Ethernet
Transit Speed	20 - 35 passage / minute
Work Environment	Indoor / Outdoor (Shelter)
Use Place	Station,park,apartment,school,factory,bank,building

Function Specifications:

◆ Both directions can be set as controlled mode or free mode.

◆ NO mode & NC mode can be switched over by users easily & freely.

◆ Self-recovery function: the machine will recovery automaticlly with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).

◆ Self-examine Function: it is convenient for users to maintain and use.

◆ Tailgating-detection function.

◆ Intruding-alarm function.

◆ Anti-pinch function: protection against finger entrapment and personal injury.

◆ Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.

◆ With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.

◆ Each machine can be set by Physical Address (Optional).

◆ Equipped with free control software for man-machine interface & control command SDK.

Customized Features:

◆ Alternative Materials, Finishes and Custom Design

◆ Access Control System Integration

◆ Ticket System Integration

◆ Camera System Integration

◆ Thermostat System Integration

◆ Remote-Controlled Button

◆ Usage Counters

◆ Waterproof and Dustproof Design: IP53 for mechanical module, IP65 for electric module

◆ SDK and technical support will be provided for Secondary development of software
