Turnstile Door

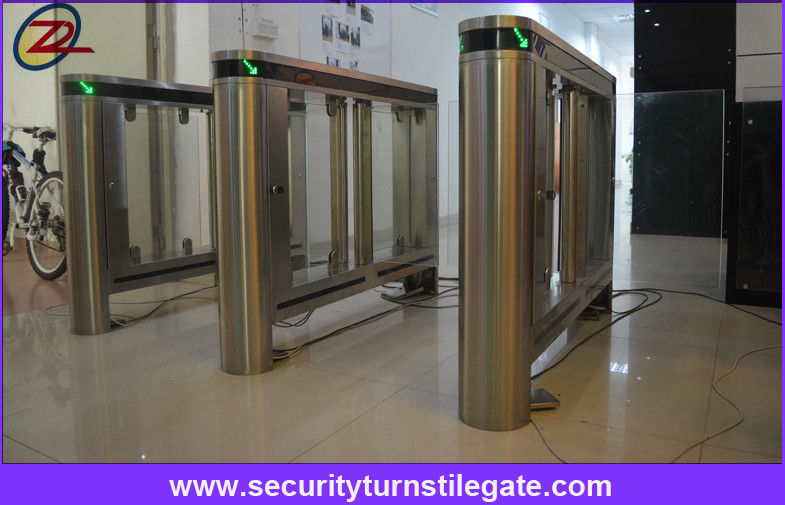

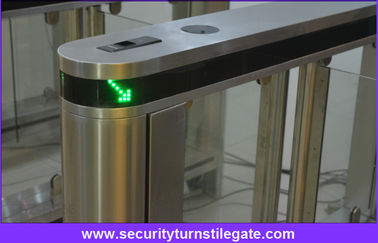

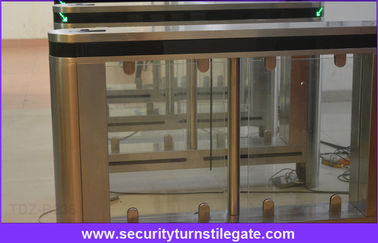

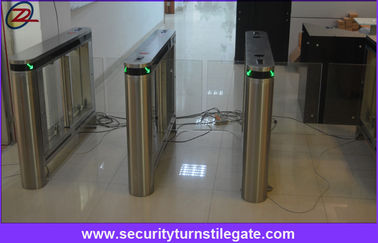

Fully Automatic Speedgate Turnstile For Access Control System

• ​Fully automatic channel width turnstile with anti-water function
• Arm Length: 600-900mm
• Control panel with counting function,LED display function (optional).
• Can use with RFID,Mifare,fingerprint,bar code,facial scanner,etc access control products

◆ Both directions can be set as controlled mode or free mode.

◆ NO mode & NC mode can be switched over by users easily & freely.

◆ Self-recovery function: the machine will recovery automaticlly with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).

◆ Self-examine Function: it is convenient for users to maintain and use.

◆ Tailgating-detection function.

◆ Intruding-alarm function.

◆ Anti-pinch function: protection against finger entrapment and personal injury.

◆ Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.

◆ With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.

◆ Each machine can be set by Physical Address (Optional).

◆ Equipped with free control software for man-machine interface & control command SDK.


◆ Office building
◆ Government
◆ School
◆ Hotel
◆ Super market
◆ Bank
◆ Park
