Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | Guangdong China |
| Certification: | CE,ISO9001,SGS,CQC |
| Model Number: | SW200 |
| Minimum Order Quantity: | 10 Sets |
|---|---|
| Price: | USD 225/Set to USD500/Set |
| Packaging Details: | Bubble bag and cardboard boxes and wooden case |
| Delivery Time: | 3-7 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 2000Set per month |
| Brand Name: | CATERLY | Opening Patter: | Automatic |
|---|---|---|---|
| Surface Finishing: | Finished | Leaf Weight: | 100kg Single Leaf / 200kg Double Leaf |
| Power Consumption: | 100W | ||
| High Light: | Auto Swing Door Opener,electric Swing Door Opener |
||

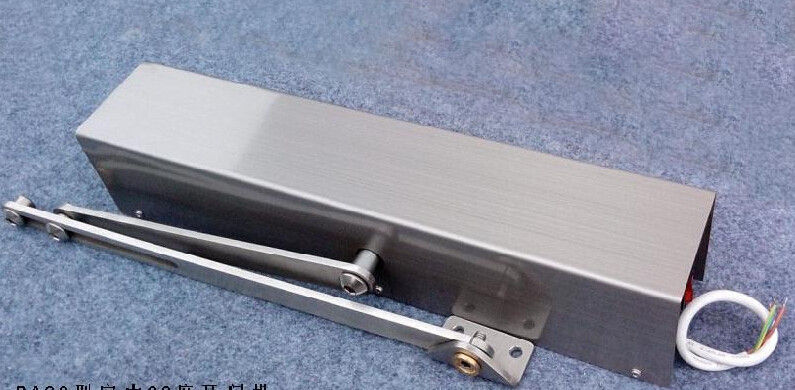

Silver 700mm to 2000mm double leaf Automatic Swing Glass Door Opener for 13years experience
TECHNICAL DATA:
Performance
| Leaf weight | 1*00kg single leaf / 2*100kg double leaf |
| Opening speed | max. 0.8m/s |
| Closing speed | max. 0.8m/s |
| Opening force | 10 to 150 N (adjustable) |
| Closing orce | 10 to 150 N (adjustable) |
| Hold open time | 1 to 5 sec |
Mechanical
| Installation | Surface Applied / Between walls / Against Posts |
| Structure | Aluminium |
| Casing |
With cover 170H * 110W Without cover 150H * 110W |
| Clear opening |
300 - 1000 mm single leaf 500 - 2000 mm double leaf |
| Clearance height | max. 3100 mm |
Electrical
| Power supply | AC 220V 5A 50Hz / AC 230V 60Hz |
| External power supply | 24 V DC / 2A |
| Power Consumption | 100W |
| Sensor power | DC 24V |
| Temperature range | -20 to +50 c |
| Relative humidity | 5 to 95% |
Function Programs
| Off |
| Automatic |
| Permanent Open |
| Half Open / Partial Opening |
| Locked |
Emergency Functions
| Emergency opening in case of power failure / Fail-safe |
| Obstacle detection with automatic return mechanism |
| Self monitoring light barriers |
| Slow speed search for obstruction |
Automatic swing door,automatic swing door operator & swing door system / auto swing door / swing door opener / door opener Automatic swing door
Swing door operator,automatic door operator system
Designed for Business shops, hotels, restaurants: for free, unhindered transport of goods
Old age and nursing homes: easy access; ideal for bed transport Banks, insurance companies, administrations: best monitoring of existing and new doors by integration into building management systems
In private areas and for handicapped people: for the easement of the daily life
Security gates, singling out people: for access control
Contact Person: Mr. Shen
Tel: 86-135367899
Fax: 86-755-423479
