Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | China |
| Brand Name: | Centuryfair |
| Certification: | CE |
| Model Number: | SJSD-ZY04 |
| Minimum Order Quantity: | 2 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard carton |
| Delivery Time: | 10-15 days after payment confirmed |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 300 pcs per month |
| Housing: | 304# Stainless Steel Plate | Life Cycle: | 3 Million Times |
|---|---|---|---|
| Communication Port: | RS485 | Working Environments: | Indoor, Outdoor |
| Opening/Closing Time: | 1 Second | Speed: | 30--40 Perosns/min |
| Arm Length: | 285 Mm | ||
| High Light: | security access gates,security barriers and gates |
||

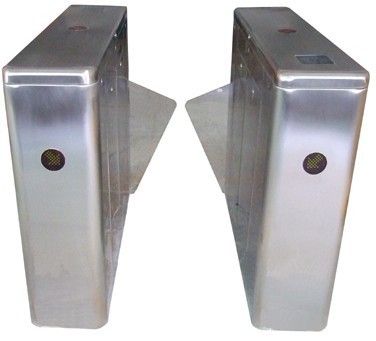

ID Card High Capability Dual Way Stainless Retractable Flap Barrier for Bus Station RS485
Description:
SJS-DZY04 is widely used in airport, musem, bus station, supermarket, park, and other traffic resticted areas. It is able to integrate with barcode, magnetic card, IC, ID card to excute access control, time attendance, tolling, etc. The machine is rustproof, durable and can resist external destroy, able to be placed both indoor or outdoor.
Applications:
Bus Station
Exhibition
Subway
Apartment
Factory
Museum
Park and so on
Specifications:
|
Framework |
304# stainless steel plate |
|
Housing dimension |
1200* 300*1000mm |
|
Arm length |
285 mm |
|
Max lane width |
600mm |
|
Weight |
90 kgs |
|
Entry/exit direction |
One-way or two-way |
|
Swing Angle |
0-180 |
|
Working Voltage |
AC220V ±10% 50/60 HZ |
|
Motor |
DC 24V brushed motors |
|
Input interface |
dry contact signal or 12V level signal, or 12V pulse signal with whose pulse width ＞100ms, driven electricity ＞=10mA |
|
Communication interface |
RS485 |
|
Service cycle |
3 million times |
|
Speed |
30-40 people per minute |
|
Closing/opening time |
1 seconds |
|
LED indicator |
2 |
|
Card reading window |
4 |
|
Maintanece window |
4 |
|
Time for entering into passing status after power on |
3 seconds |
|
Time for automatic reset after breakdown |
10 seconds |
|
Temperature |
-10℃—— 50℃ |
|
Relative humility |
≤90%, no-condensation |
Competitive Advantages:
1. Breakdown self-checking and alarm, very convenient to maintenance and use.
2. Easy to program operation mode by built-in little keypad on master controller
3. Machanical structure & induction anti-Pinch enable motor to stop working automatically in given time
4. Sound & light alarm, including alarm and close in case of unauthorized etry and trailling, etc
5. Gate synchronization adjustable
6. Automatic resetting function: during openning, the system will cancel access if nobody pass in given time.
7. Induction /automatic delay reset process 5 second after open
8. Easy to be integrated with magnetic card, barcode card, ID card, IC card, etc
9. Single or double direction optional
10. Open automatically when power off and close automatically when power on.
11. Counting function (Optional)
