Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | Swing Barrier Gate Made In China |
| Brand Name: | Wonteda |
| Certification: | CE |
| Model Number: | WTD-A401-4 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | WOODEN BOX |
| Delivery Time: | 10-15 day |
| Payment Terms: | T/T ,Western Union,Paypal etc.. |
| Supply Ability: | 1000 Set/Month |
Product Name:

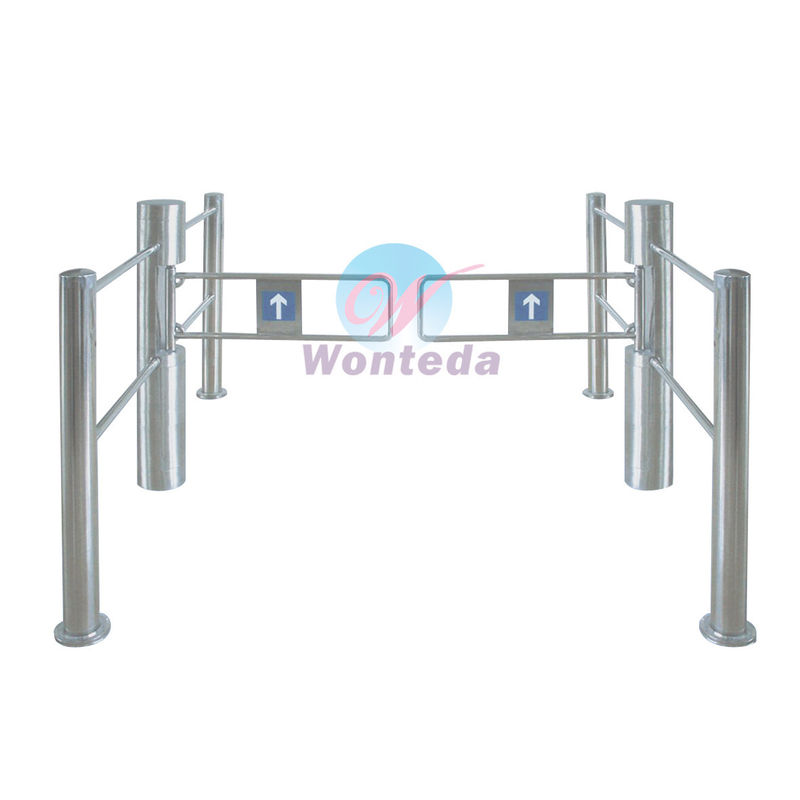

Swing Barrier For Pedestrian Access Control Gate/Swing Barrier Gate 304#Stainless Steel With Guardrai Turnstiles/Motorized Barrier Turnstile
Specifications
High quality automatic swing barrier gate
1.304#Stainless steel material.
2.Both directions can be set as controlled mode or free mode.
3.Self-recovery function.
4.Indoor or outdoor use.
5.Anti-collision function.
Product Description:
Swing barrier is designed to allow passage of bicycle ,wheel chair, pushing prams or passage with luggage, mainly used in mall, market etc.
Together with intelligent card reader/writer and management software, they are combined as intelligent barrier gate management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc.Biometric fingerprint/face/M1/ID/HID card reader are available to be used with the swing barrier gate,to prevent non- authorized person to enter.
Technical Parameters :
| Housing Material: | 304# Stainless Steel at 1.5mm |
| Size: | Φ180mm(Diameter)×600mm(passage width)×1226mm(H) |
| Passage Width /Wing Length | 600MM(passage width)/530MM(wing length)(standard) |
| Power Supply Input | AC110/220V±10% |
| Working Voltage | 24V DC |
| Power Consumption During Idle | 10W/Mechanism |
| Power Consumption | 50 W |
| Drive Motor | Brush DC Motor 180W/24V |
| Motor Speed | 1600 turn/minute |
| Starting Time after Power on | 0.5 second |
| Opening/Closing Time | 0.8(adjust) |
| Automatic Reset Time after Fault | 10 second |
| Pass Speed | 40 persons/min(open often), 25-30 persons/min(close often) |
| Protection Level: | IP54 |
| Working Temperature: | 30°C to +70 °C |
| Electro-magnetic drive: | 24V DC |
| Polishing: | Brushed surface (Standard) / Polishing surface |
| Weight: | About 80kg/set 40kg/pcs |
| Mechanical life : | 3000000 |
| Relative Humidity (RH): | 5%-90%(without concretion) |
| communication interface | RS 485, distance ≤1200m |
| Input singal optional | DC12V/dry contact/RS485/ |
System function:
1. Bi-directional passing or single way passing.Both directions can be set as controlled mode or free mode.
2. NO mode & NC mode can be switched over by users easily & freely.
3. Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
4. Self-examine Function: it is convenient for users to maintain and use.
5. Tailgating-detection function.
6. Intruding-alarm function.
7. Anti-pinch function: protection against finger entrapment and personal injury.
8. Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
9. With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers such as Magnetic card, Barcode card, FID card and so on.
10. Each machine can be set the running status online by setting the built-in keys.
11. Equipped can use the photoelectric sensor for anti-tail, anti-clamp, alarm and direction judgement function etc..
