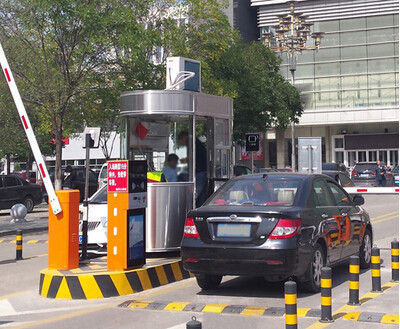

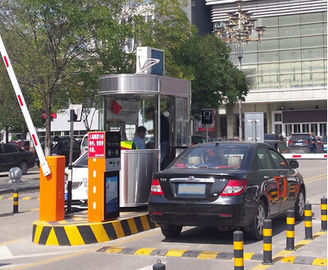

Residential area Entrance Smart TCP/IP automatic car parking system

                          TCP/IP Parking Mannagement System

1.1 Main features

• Embedded TCP / IP network design, easy access to LAN, saving wiring workload.
• Two Wiegand Reader Interfaces, support Wiegand output reader format 26, 34, 44.
• Two RS232 Reader Interfaces, support the S50, S70 card reader interface.
• Entrance/ exit control of flexible options, code switch by pulling the controller is set to import or export control.
•  RS485 display interface to access the poll box displays, parking spaces and two advertising display screen.
• Card dispenser control interface (entrance) or card collector control interface (exit).
• Digital voice synthesis output, on-board storage of voice, speech by the software updates site content.
• Four relay output interface can control the automatic barrier to opening and closing, stop and lighting.
• Support the IC card, ID card and IC card and ID card mix.
•  Support network to run the two-way operation and off-line operating mode.
• Onboard card number stored number: 25000; offline record store out of the number of admission: 80 000.
• Controller firmware can be updated via the web site.

1.2 Application Overview

Controller uses ARM chips, full TCP / IP network technology, real-time embedded operating system design. Support to non-contact type ID card, IC card or ID card and IC card mix of parking management system. TCP / IP technology for users to install, use, maintenance,

upgrades, upgrading and expansion to bring the convenience and fast, has a very high cost.

System can be run offline; the network communication failure, all entrance and exit are still able to work without affecting users in and out.
