Place of Origin: | GUANGDONG,CHINA |
Brand Name: | TENET |
Certification: | CE ROHS |
Model Number: | PGS-320 |
Minimum Order Quantity: | 1 |
---|---|
Price: | USD |
Packaging Details: | Corrugated Case |
Delivery Time: | 1 - 5 working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 9999 Unit per Month |
Operating Voltage: | DC12V - 24V | Operating Temp: | -20°C To +65°C |
---|---|---|---|
Storage Temp: | -40°C To + 85°C | Operating Relative Humidity: | 30%-90% |
Communicate Interface: | Rs485 | Type: | Parking Guidance System Controller |
Warranty: | 2 Year | MOQ: | 1 Unit |

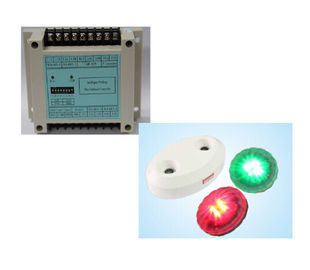

Indoor Smart Parking Guidance System Controller For Valet Parking
Specifications
1. Parking control system ultrasonic parking sensor system
1. Green and Red light detection
2. Automatic data collection
3. Smart guide
4. Standard network parking management software: Chinese/English supported, windows xp/sever2003;
5. High Speed: TCP/IP network communication 100MB/S, faster than RS-48: 9600/1024/BS;
6. Management Convenience,Good Extensibility:advanced B/S management mode is used and access by GOOGLE browser. By TCP/IP network, it can be work automatically, e.g. management (charge, query record, report forms, print and so on.), maintenance, upgrade, test and so on.
7. Using advanced B/S management mode, visit by browser and can manage automatically (charge, query record, report forms, print and so on), maintain, upgrade, test e.g. by TCP/IP network.
8. Fill light will open and close automatically on fixed time.
9. After correct configuation,the controller can work offline independently.
Overview of System Function
1.1 Slots guidance
Controlling LED display, ultrasonic sensor, collecting sensor data and updating data, improve the
utilization rate of a parking lot.
1.2 Operation off line
Data center will save slots statistical information of every zone automatically, and collection terminal will
save slots collection information of every terminal automatically.
1.3 Control traffic light (red-green light)
Two lines relay output control display of traffic light.
1.4 Warning when indicator light out of order
According to flicker frequency of indicator light to estimate operating status, it’s convenient to maintain
and manage.
Installation and Setting
Installation
Lay the cables and install according to the design scheme; arrange layout reasonably, handy installation. In
installation, please pay more attention to matched resistance of CAN bus and RS485 bus. Already including CAN
bus matched resistance (120 Ohm), user just need to short-circuit two longest controller’s CANL and RES in CAN
bus network. The matched resistance (180 Ohm) is connected to every line RS-485 bus controlled by PGS-320
controller with parallel mode. In your use, just need one resistance(180 Ohm) connect to LED screen or the longest
detector in bus.
Terminal setting
Chart 3 DIP switch
As chart 2, all DIP switch in bottom is 0# terminal regarded as data center acquiescently. For A5-A0,
high-order in front and low-order in behind, S1 and S0 is preset switch

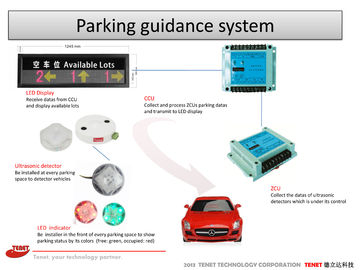

1.Ultrasonic Sensor and Light.(Light with green and red color).Detect the available Parking space.
If there is car the light will be Red,if no car then Green.

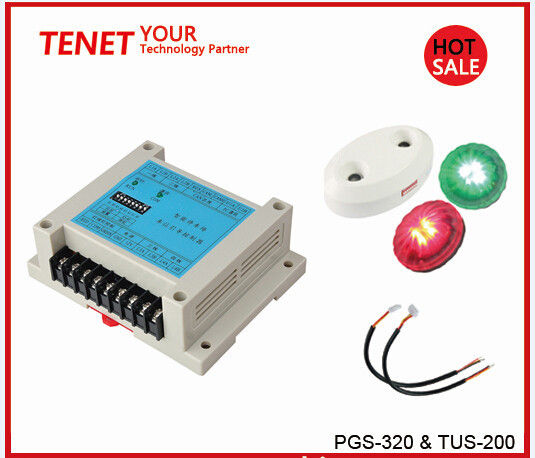

2.Controller Board PGS-320.Set one controller as Center Controller Unit.Others are Zone Controller Unit.
One Zone Controller Unit can connect with 5 lineS of RS485 cable.
One RS-485 cable can connect with 20 sensors will be much better.
3.Led Guiding Display--parking guidance at Entrance or Crossings of carpark
