car park guidance system

parking Lots Guiding system

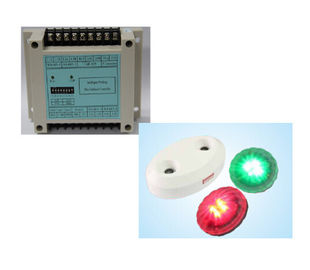

Parking Zone Guiding Controller

l Industrial-grade 32-bit ARM microprocessor and based on embedded real-time operating system (RTOS)

l LCD menu-based interface, simple and visualized

l With two kinds of networking: CAN bus or wireless

l Dual channel loop detector processor is Integrated

l Distinguish driving direction automatically

lDistinguish continuous vehicle automatically

l Off-line work, can be cut off from computer and work independently

l GPRS-DTU module can be connected to host to transmit data remotely

Technical Parameters

l Operating voltage: AC 220V/100mA

l CAN and RS486 bus and so on communication interface are provided

l Detection Sensitivity: 0~9 (adjustable)

l Detectable Vehicle Speed: 5~80 km/h

l Wireless Networking Distance: 500m

l 32 zones and 31 extensions set can be managed by1 host

l 9999 parking lots can be managed by every zone
