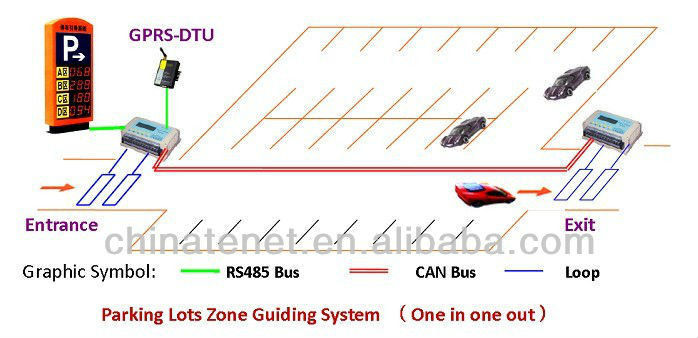

car park guidance system

available parking space quantity counting system

Main Features

1)Standard network parking management software: Chinese/English supported, windows xp/sever2003;

2)High Speed: TCP/IP network communication 100MB/S, faster than RS-48: 9600/1024/BS;

3)Management Convenience,Good Extensibility:advanced B/S management mode is used and access by GOOGLE browser. By TCP/IP network, it can be work automatically, e.g. management (charge, query record, report forms, print and so on.), maintenance, upgrade, test and so on.

4)Using advanced B/S management mode, visit by browser and can manage automatically (charge, query record, report forms, print and so on), maintain, upgrade, test e.g. by TCP/IP network.

5)Fill light will open and close automatically on fixed time.

6)After correct configuation,the controller can work offline independently.

Main technical parameters

l  Working temperature:-20°C-70°C

l  Working Power supply:    AC 220V/100mA

l  LCD display:128 x 32 dot matrix, gb simplified Chinese or English display (can menu select)

l  CAN interface: safety electrical isolation, communication rate 10 Kbps, the maximum distance 3 km

l  RS485 interface: half duplex, safety electrical isolation, baud  rate

9600 BPS

l  Using conditions: Installation in the bins, waterproof, moistureproof, etc.

l  Vehicle detection sensitivity: 0-9 ten levels can be adjusted

l  Most vehicles existing  time: 3-255 seconds can be adjusted

l  Inductance coil range: 80 ~ 300 uh

(A, B coil edge to edge apart 0.8 ~ 1 meter or so, circle number by one circle in case they do each other.)

l  Test vehicle speed: 5-80 km/hour

l  wireless networking visible distance: 500 meters

l  Using conditions: only for 2 to 4m trickle.
