Place of Origin: | China |
Brand Name: | Globalkeyaccess |
Certification: | CE |
Model Number: | GKA3080 |
Minimum Order Quantity: | 1set |
---|---|
Price: | negotiation |
Packaging Details: | Packed in carton |
Delivery Time: | 15 working days after received your payment |
Payment Terms: | T/T or western Union, paypal |
Supply Ability: | 1,00sets per month |
Product Name: | Automatic Pay Station | Application: | Parking Lots |
---|---|---|---|
Communication: | TCP/IP | Touch Screen: | 12 Inches |
Banknotes: | Yes | Coin: | Yes |
Hourly Parking Payment: | Yes | Monthly Fee Payment: | Yes |
Voice Announcement: | Yes | Receipt: | Yes |
Dimension: | 1600×800×600mm | Weight: | 150kg |
Alarms: | Door Ajar, Vibration, Water Leak | ||
High Light: | automated parking system,pay station machine |

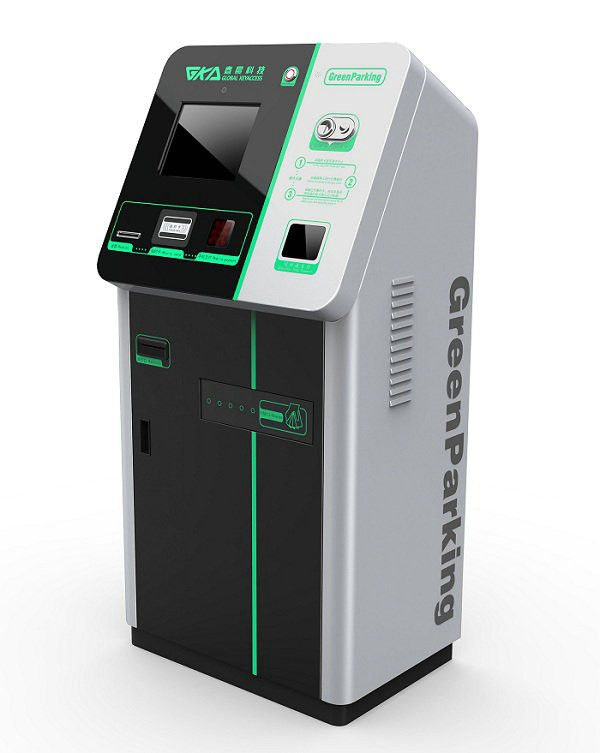

Vehicle Revenue Access Control Automatic Pay Station Machine with 12 Inch Touch Screen
Specifications:
Material |
Cold rolled mild steel thickness at 2.0mm |
Paint |
2935C(Blue),021C(Orange), 803C(Yellow), 432C(Gray) |
OS platform |
Win XP, Win 7 |
Database type |
Microsoft SQL2000/2005 |
Working mode |
Online(TCP/IP) |
Touch screen |
12 inches touch screen or customized |
Banknote collector |
SC-83 banknotes |
Banknote dispenser |
2~3 denomination options |
Coin hopper |
2 denomination options |
Banknote collector capacity |
1200 pieces |
Banknote dispenser capacity |
700-900 pieces |
Coin hopper capacity |
500-1000 pieces |
Banknote rejection rate |
<0.01% |
Banknote verification rate |
>99.99% |
Receipt printer |
Thermal printer, life cycle > 100,000 times |
Duration per transaction |
20~30 Sec |
Indoor use |
Yes |
Outdoor use |
Need a shelf on the top |
Power consumption |
220V 660W |
Environment temperature |
-30~80℃ |
Dimensions |
1550*700*600mm |
Weight |
150kg |
Description:
Touch screen
Support multiple parking pay stations in 1 parking lot
Support multiple entrances and exits
Could be installed outdoors(with a shelf above)
Monthly card charge(from 1 to 12 months options)
Hourly card payment(screen message and voice prompt in the process)
Support RFID card/thermal ticket
Support most of countries' banknotes
3 denominations banknote dispense
Coin changing(2 denomination options)
Receipt print(contents could be programmed)
Alarms: banknote full, banknote low, receipt paper low, coin hopper is empty, forced open etc.
Support coupon parking, shopping discount parking
Applications:
Parking lot system
Competitive Advantage:
Manufacturer of the vehicle access control system
Could handle sharp increase orders
Friendly used software pages
Reliable in various of environment
Working temperature is -30°c~80°c
OEM production is accepted
Vehicle revenue access control system automatic pay station
