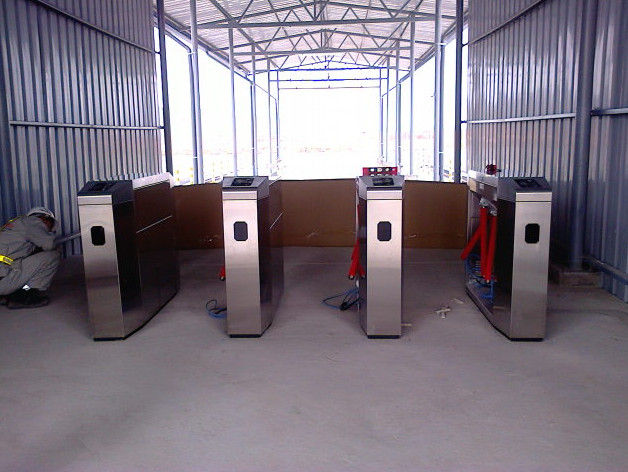

Electronic Indoor Tripod Controlled Access Turnstiles With IC Reder Card

Description:

Fujica IC Card Reder Tripod Turnstile consists of casing, magnetic force turn plate, reader module, main controller module, direction guide, limit switch etc., can be used for entrance control, applications like apartment, factory, museum, station and ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent tripod turnstile management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc. The equipment opens half-automatically, Mifare-1, IC, ID and Bluetooth are available to be used with the tripod turnstile.

Specifications:

 Power consumption 50W
Housing Size 1300*280*950mm
Housing material 1.5--2mm, 304# stainless steel, corosion resistant
Drive motor NA
Channel width 550--600mm
Pass speed 25 persons/min.
IP protection IP44
Input singal optional DC12V/dry/contact/RS485/RS232/Remote)
railing-off against power off Yes
Working enviroment temperature minors 30°C to 70 °C
Working environments indoor,outdoor
Relative humidity ≤95% coagulation free
MCBF 2,000,000 cycle

Fuctions:

1. Can open the turnstile by two input signals (signals can be input by access controller, button
    or other equipments)
2. Direction guide function,  when the turnstile is ready to read card, the yellow light in the
    middle will turn one; after reading card and ready for passing, the upper blue light will turn
    on; if try to push the railing without permission, the red light will turn on
3. Single direction or double direction optional
4. Railing will be off when power off
5. Counting function, if read the card for N times, N persons can pass before the railing close,
    N<=8(optional function)
6. Voice prompt and display screen available (optional)
7. External counter can be connected to count number of passed people (optional)
8. RS485communication, PC command through serial port is allowed (optional)
9. Alarming output for pushing the railing without permission(optional)
