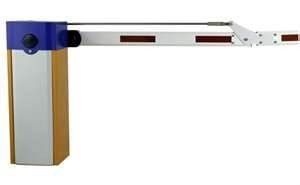

parking arm barrier

Automatic Barrier Gate for parking management system and toll system

Automatic Barrier Gate, barrier gate, parking system, car parking system, traffic lot, road safety, :

Application: parking lots, toll gates, goods yards, railway crossings, commercial
premises, apartment block access


Functions & Features

1) Manual release

2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking

3) Die-casting aluminum alloy motor, precision and good at thermal radiating

4) Motor cooling fan, solving the problem of heat-protection

5) Double safety limit switches (photoelectricity limit switch/motor memory sensor)

6) Reversing on obstacle

7) Auto-closing

8) Support the INFRARER PHTOCELL for anti-bumping function (optional)

9) Support the external and internal VEHICLE LOOP DETECTOR (optional)

10) Traffic light interface

11) Wire control (switch signal)/ Remote control (418MHZ)

12) RS485 communication module (optional)

13) Bi-direction passing, can be installed both on left & right side

Technical Data

1.Mode (WJDZ): 301-33, 301-36

2.Running time: 3s, 6s

3.Boom type: 180°folding

4.Max Boom length: 3m, 5m

5.Boom dimension (WxH): 45x100mm

6.Boom weight: 9kg, 11kg

7.Voltage: 220V ± 10%, 110V ± 10%

8.Frequency: 50/60Hz

9.Motor voltage: 220V

10.Power: 120W

11.Working temperature: -40~75
