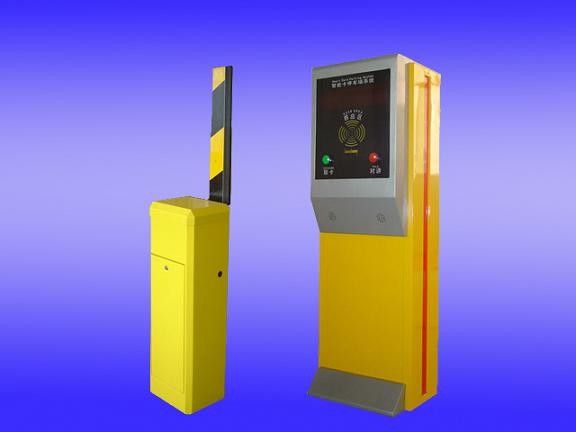

Intelligent Car parking lots management system
Optional beam lengths: 1M-6M
Remote control distance 30M
Startup speed: 4S
Detailed Product Description
Car Parking Lots Management System
support EM and Mifare, and other RFID card
125KHz or 13.56MHz or 2.5GHz
Introduction
Industrial design, elegant appearance
Vehicle barrier power: AC220V / 150W
Speed: 1s ~ 6s (optional)
Boom length: 1~ 6m (optional)
Operating humidity: 5% to 95%
Controlling Box Size: 1340*340*480mm
Vehicle Barrier Size: 360*290*1035mm
Galvanized steel cold rolling body, powder painting surface, waterproof and anti-rust
This controlling box and vehicle barrier are suitable for CHD proximity card, long distance card and barcode ticket parking lots management system
Standard color: Orange (other colors are optional).
Parameters
| Card type: | support EM and Mifare, and other RFID card |
| RF frequency: | 125KHz or 13.56MHz or 2.5GHz |
| Input voltage: | AC220V/50Hz(default) |
| Working voltage: | DC12V |
| Working temperature: | -20°c to +70°c (default) |
| Communication output: | Standard TCP/IP, RS485 |
