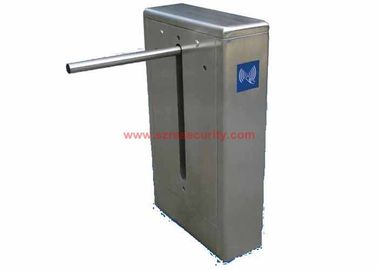

Station Drop Arm Barrier With Bi-direction Card Swipping Execution Control

Single-pole turnstiles



Bridge type with trapezium leg, and without covered plate



Framework 304 grade stainless steel



Size: 1,200 x 162 x 1000mm



Weight: 75kg



Channel width: ≤600mm



Arm length: 510 mm



Machine center: imported germanic Technological motor



Logic voltage: 24V



Power: 20W



Working mode one way/double way (optional)



Interface standard port-RS485



Power voltage: 220V AC (10%more or less), 50Hz



Passing efficiency 30 persons/m



Two-side card reading



LED light direction guide (chooseable)



Clamping avoid



The pole automatically falls down when eletricity is cut down





Drop arm barrier parameter



Item	RS1008
Model
Voltage	AC 220V/110V± 10%
Frequency	50/60Hz
Current	3A
Control circuit:	DC24V
Power consumption	40W
Size	1200*165*980mm
Material	stainless steel





Features and functions:





1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main



board.

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop



working automatically within the prescribed time and reset again after the default delay (till fully



reset).

4. Anti-breakthrough function. The arms are locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipments).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5



seconds), the system will cancel the authority of the current user automatically.

7. Passage can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.



(Access controller needed)

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Arms auto drop when power off and auto rise when power on, complying with fire safety



requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function (optional).



The turnstiles provides a basic tripod to control access smoothly and effectively by basic operation.



And also prvent illegal in and out.



The machine is well in design, rustproof, durable and can resist external destroy.
