Top Grade Drop Arm Barrier Automatic Remote Control RFID Turnstile

Top Grade Drop Arm Barrier Automatic Remote Control RFID Turnstile

Specifications

CE approved
304 stainless steel
artistic configuration design
Anti-nipped

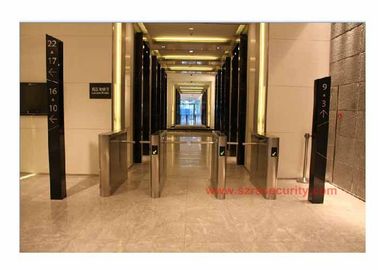

Drop Arm Waist High Security Turnstile Gate

RS 1009 waist high turnstile a high-tech product aimed at the pedestrian access intelligent management, which is a upgraded product based on intelligent tri-turnstile, swing barrier, and similar to wing barrier. This product is well-processed and newly-designed with full functions, high grade, and mainly used in high grade places such as top-grade community, intelligent mansion, hotel, subway, port, club etc. The product integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve acess intelligentized control and management.

Function and characteristics:

1. With function of self-examine and alarm, it is convenient for maintain and use.

2. Being able to program operation status by the small keyboard in the main board

3. Sophisticated sensor systems prevent pedestrians from being nipped and from hurt

4. System detects unauthorised entry passager and activates the inner alarm system.

5. Unit is automatically locked untill opening signal is received.
6. Poles synchronization (adjustable)
7. Automatically reset function: It will automatically lock if the pedestrian hasn‘t pass through the channel in the pre-set time after the opening. The passing time is adjustable

8. Automatically open the gate when power off and automatically close when power on

9. Compatible with any access control system:accommodates a wide variety of operating modes for maximum fexibility

10. One direction or bi-direction are optional

11. It can be directly controlled and managed by remote computer.

12. Color light on both side makes the cabinet more beautiful.

Parameter

Extendable functions:

• Counting
• Length of framework and material of arm are optional.
• Technical parameters:
• Framework material: 304 stainless steel
• Framework size: L1200*W150*H1000(mm)
• Standard length of pole: 300mm(standard)/250mm to 600mm(option)
• Net weight: 98Kg/pair
• Driving eletricmotor: DC 24V
• Input interface: Dry contact signal or 12V level signal or DC12V pulse signal
• Driving current: > 10mA
• Normal life-span: 3million times
• Communication interface: RS485 standard Distance less than 1200metres
• LED indicator: card reader window: 2
• Overhaul window: 4
• Transit speed: 50-60 persons/min
• Time for opening or closeing: 1 seconds
• Starting time after power is on: 3 secconds
• Automatic reset time after fault: 10seconds
• Working environment: indoor, outdoor( with a tent over)
• Working temperature: -10C-50C Relative humidity: ≤90% no condensation

Main structure and configuration

standard caseworks

poles

electric control boxes

pcs logic panels

transformaers

electricmotors

sets of core and transmission parts

7 infrared devices

alarm annunciators
