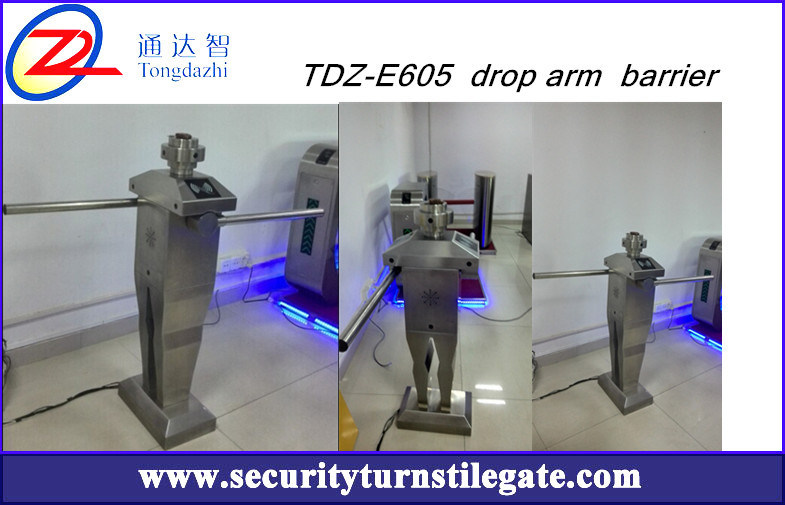

High Security Swing barrier gate Robot Optical Turnstiles with Single pole

Product Descriptons:

Arm Drop Barrier Turnstile designed by TDZ pursues the combination of artistic  and modern elements, and it is very ideal for elegant location.

Arm Drop Barrier Turnstile  developed by TDZ has the widest passage which available for pedestrians, users with luggage or package and bicycles.

The machine organically integrates machinery, electronics, microprocessor

control and a variety of identification technologies, conveniently compatible  with access control systems, barcode cards and biology identification

equipment.

The machine provides a high level of security and high capacity by adopting reliable

security protection devices, alarm devices, direction indicators etc.

Framework Specifications:

Framework: 304 (Standard) / 316 grade stainless steel

Size: 1200*280*1000(mm)

Thickness of Ply: 1.5mm (Standard) / 2.0mm

Finishing: Brushed surface (Standard) / Polishing surface

Material of Obstacles: Stainless steel (Default) / Organic glass (Optional) / Tempered glass (Optional)

Passage Width: 350-550mm (Max)

 Function Specifications:

Both directions can be set as controlled mode or free mode.

NO mode & NC mode can be switched over by users easily & freely.

Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).

Self-examine Function: it is convenient for users to maintain and use.

Tailgating-detection function.

Intruding-alarm function.

Anti-pinch function: protection against finger entrapment and personal injury.

Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.

With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.

Each machine can be set by Physical Address (Optional).

Equipped with free control software for man-machine interface & control command SDK.
