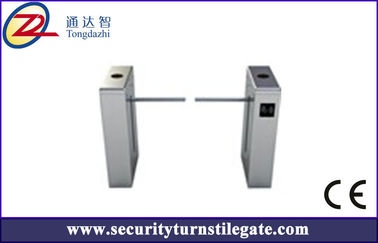

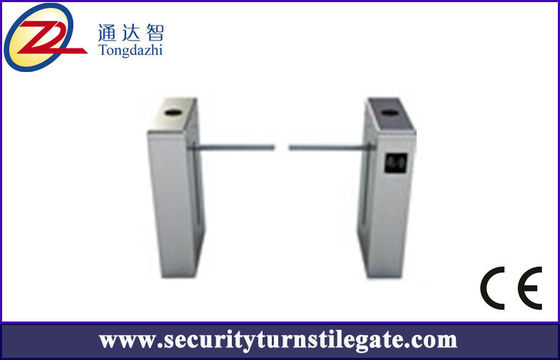

Pedestrian access control LED Drop Arm Barrier security Electronic Turnstile
Quick Details
- Size:600*160*1000mm
- material and color are optinal
- Material:304stainless steel
- turnstile manufacturer,factory price
- OEM welcome
Description:

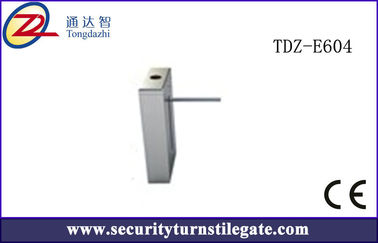

TDZ E604 is an electro mechanical turnstiles. It is an innovative pedestrian control technology that designed
to achieve best balance quality,performance and affordability.
TDZ E604 can effectively control high volume human traffic ( up to 30 person per minutes ) while still maintaining
a welcoming atmosphere. They can easily be integrated with any electronic system for ticketing, access control
or time attendance.
TDZ E604 is suitable for indoor and outdoor. They are optimized economical solution for railway, bus station, factory, colleges, commercial building, library, stadium, game park, bank and etc
Technical Parameters
| Framework |
304(standard)stainless steel |
| Size |
600*160*1000mm |
| Weight |
60kg. |
| Operating Mode |
one-way or two way control |
| Power supply voltage |
AC220 ± 10%V, 50HZ |
| Interface |
standard RS485/distance≤1200m or TCP/IP. |
| Gate opening time |
0.2 second |
| Transit speed |
30-40 persons per minute |
| Working environment |
indoor or outdoor |
| Temperature |
-10 Celsius to 50 Celsius |
| Relative humidity |
:≤90% no condensation |
Functions& Features
1. Stainless steel box, box-type bevel shape, novel and beautiful, durable.
2. Waterproof, sunscreen, anti-temperature, anti-cold.
3. Access Prompt function: Red and green light prompt the passing information.
4. The programmable gates control state, with a variety of operating modes you can choose, you can set a
one-way or two-way control
5. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
6. Power failure emergency function after power channel automatically open, closed automatically after
power-on, to meet the special needs of the user and the fire safety requirements
7. The control panel with counting function, LED digital display function (optional)
8. The standard input and output interface, is the best choice for system integrators
9. Sound, light alarm function: with trespassing, trailing alarm
10. Scour protection function ,when the gate signal is not received, the stick is automatically locked
11. Fault detection and alarm function, user-friendly maintenance and use
Our service
Visit our factory free.
Reply your inquiry in 24 working hours.
Professional staff answer your questions in English.
Customized design is available,we can accept OEM & ODM.
Unique problems can be made solution by our professional engineers.
Special discount and protection of our distributors or agents in their area.
