Metro Smart Red Wing Four Channels Traffic Turnstiles With IR Sensor Control

Metro Smart Red Wing Four Channels Traffic Turnstiles With IR Sensor Control

  • Metro Smart  Red Wing Four Channels  Traffic Turnstiles With IR Sensor Control
  • Metro Smart  Red Wing Four Channels  Traffic Turnstiles With IR Sensor Control
Metro Smart  Red Wing Four Channels  Traffic Turnstiles With IR Sensor Control
Product Details:
Place of Origin: China(mainland)
Brand Name: RS Security
Certification: ISO,FCC,SGS,RoHS,CE
Model Number: RS 288
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 2000USD
Packaging Details: wooden box
Delivery Time: 3-8workdays
Payment Terms: TT
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel Wing Color: Red
Size: 1400*300*990mm Protection Grade:: IP44
Colors:: Bright Silver Grey And Black, Or Custom Flap Gate Service:: OEM/ODM
High Light:

automatic gate barrier system

,

Tripod barrier gate

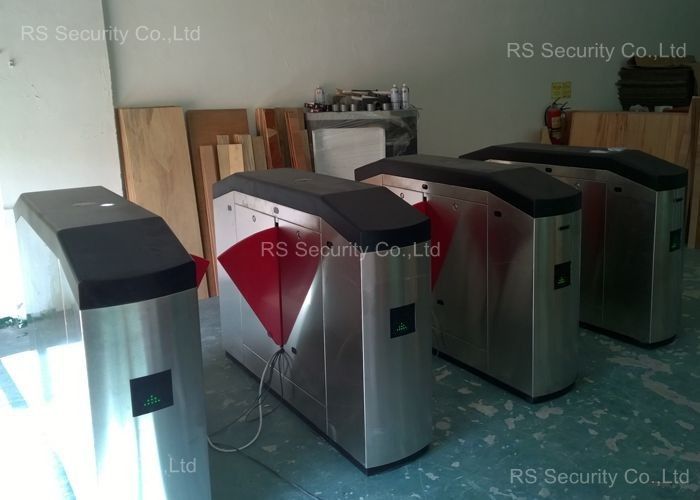

Metro Smart Red Wing Four Channels Traffic Turnstiles With IR Sensor Control



Access flap barriers Finish: Brushed (default) / Snowflake / Paint (optional, color customizable), High



quality brushless DC motor driving baffle Flex, Very good synchronism, Smooth operation, No jitter,



Low noise, Access Fast; baffle opening and closing speed and delay time adjustable.





Specification:



Brand RS Security Co.,Ltd
Item No. RS 288
Housing Material 304 stainless steel
Dimensions L1000 x W300 x H1000mm
Maximum Passage Width 600mm
Power Supply AC220V±10%,50HZ
Motor Voltage DC24V
Flap Opening/Closing Time 0.2S
MCBF 5 million cycles
Transit Speed 35 persons/min
Operating Environment Indoor/outdoor (Shelter)
Operating Temperature -30°C ~ 60°C
Operating Humidity ≤95% no condensation





Description:



1, With function of self-examine and alarm, it is convenient for maintenance and use.



2, Being able to program running status by the small keyboard in the main board



3, Preventing pedestrians or bicycle from being nipped and from hurt, the force of the



Pole is less than 2Kg



4, Sound or light alarm function



5, Poles are automatically locked until a opening signal is received.



6, Poles synchronization



7, Automatically reset function: It will automatically lock if the pedestrian hasn't pass



through the channel in the pre-set time after the opening. The passing time is adjustable.



8, Channels automatically open when power off, and automatically close when power on.



Metro Smart  Red Wing Four Channels  Traffic Turnstiles With IR Sensor Control
