Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | China(mainland) |
| Brand Name: | RS Security |
| Certification: | ISO,FCC,SGS,RoHS,CE |
| Model Number: | RS 588 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 2000USD |
| Packaging Details: | wooden box |
| Delivery Time: | 3-8workdays |
| Payment Terms: | TT |
| Supply Ability: | 3000pcs/month |

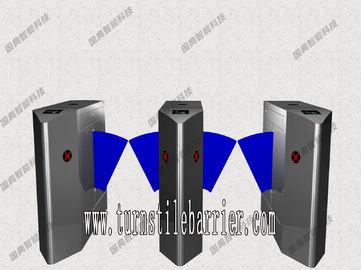

| Series: | Flap Barrier | Material: | 304 Or 316 Stainless Steel |
|---|---|---|---|
| Protection Grade:: | IP44 | Colors:: | Bright Silver Grey And Black, Or Custom |
| Flap Gate Service:: | OEM/ODM | Flap Gate Longevity:: | Heavy Duty |
| High Light: | automatic flap gate,Tripod barrier gate |
||
Electronic Control System
The electronic control system mainly consists of readers, control panel, flap barrier main board,
infrared correlation tubes, proximity switch, 24V power supply, indicator light and battery (optional).
The functions of the main parts are as follows:
Specification:
| Brand | RS Security | ||||||||||
| Item No. | RS 588 | ||||||||||
| Housing Material | 304 stainless steel | ||||||||||
| Dimensions | L1200 x W280 x H1000mm | ||||||||||
| Maximum Passage Width | 550mm | ||||||||||
| Power Supply | AC220V±10%,50HZ | ||||||||||
| Motor Voltage | DC24V | ||||||||||
| Flap Opening/Closing Time | 0.2S | ||||||||||
| MCBF | 5 million cycles | ||||||||||
| Transit Speed | 35 persons/min | ||||||||||
| Operating Environment | Indoor/outdoor (Shelter) | ||||||||||
| Operating Temperature | -30°C ~ 60°C | ||||||||||
| Operating Humidity | ≤95% no condensation | ||||||||||
Description:
1, With function of self-examine and alarm, it is convenient for maintenance and use.
2, Being able to program running status by the small keyboard in the main board
3, Preventing pedestrians or bicycle from being nipped and from hurt, the force of the
Pole is less than 2Kg
4, Sound or light alarm function
5, Poles are automatically locked until a opening signal is received.
6, Poles synchronization
7, Automatically reset function: It will automatically lock if the pedestrian hasn't pass
through the channel in the pre-set time after the opening. The passing time is adjustable.
8, Channels automatically open when power off, and automatically close when power on.
9, Several card reading devices are attachable.
10, One direction or bi-direction control are optional.
11, It can be directly controlled and managed by remote control.
