Security Access Control Flap Barrier Gate Full Automatic For Station And Airport

Security Access Control Flap Barrier Gate Full Automatic For Station And Airport

  • Security Access Control Flap Barrier Gate Full Automatic For Station And Airport
  • Security Access Control Flap Barrier Gate Full Automatic For Station And Airport
Security Access Control Flap Barrier Gate Full Automatic For Station And Airport
Product Details:
Place of Origin: China(mainland)
Brand Name: RS Security
Certification: ISO,FCC,SGS,RoHS,CE
Model Number: RS 488
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 2000USD
Packaging Details: wooden box
Delivery Time: 3-8workdays
Payment Terms: TT
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Series: Flap Barrier Product Name: Intrusion Alarm Flap Barrier
Material: 304 Or 316 Stainless Steel Chassis Thickness: 1.5-2.0mm
Certificate: CE FCC RoHS SGS Size: 1200*280*990mm
High Light:

automatic flap gate

,

Tripod barrier gate

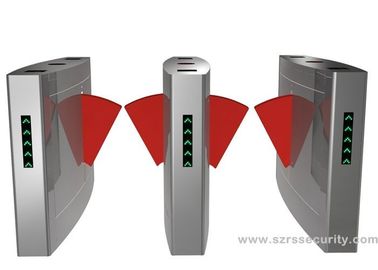

Security Access Control Flap Barrier Gate Full Automatic For Station And Airport



Flap turnstile (subway gates) can define the infrared overlap time, because some gates have a



short distance between infrared too many (such as alarm infrared and anti-clip close), to prevent



the body from blocking the two infrared voice will false alarm. The shell frame is made of high-



quality stainless steel. The gap between the baffle and the box is very small, and all the internal



components are rust-proof and anti-corrosion-treated to ensure their durability.





Technical Parameter
Model RS 488
Housing Material Stainless steel
Dimension 1400*280*950 mm
Channel Width 500~550 mm
Configuration Single direction/ bi-direction, single/double flap available.
Relative Humidity ≤95%
Working Temperature -30ª~+70ª
Working Conditions Indoor, Outdoor
Voltage AC 220V±10% 50Hz
Input Interface 12V signal level or 12V pulsing signal with pulse width>100ms
Driving Current >200mA,support multiple signal input
Pass Speed 40 persons/min
Communication Interface RS485
Communication Distance 1200M
MCBF 3,000,000 times





Description:



1, With function of self-examine and alarm, it is convenient for maintenance and use.



2, Being able to program running status by the small keyboard in the main board



3, Preventing pedestrians or bicycle from being nipped and from hurt, the force of the



Pole is less than 2Kg



4, Sound or light alarm function



5, Poles are automatically locked until a opening signal is received.



6, Poles synchronization



7, Automatically reset function: It will automatically lock if the pedestrian hasn't pass



through the channel in the pre-set time after the opening. The passing time is adjustable.



8, Channels automatically open when power off, and automatically close when power on.







304 Stainless Steel Card Reader Exit Access Flap Barrier
