| Place of Origin: | China(mainland) |
| Brand Name: | RS Security |
| Certification: | ISO,FCC,SGS,RoHS,CE |
| Model Number: | RS 988 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 2000USD |
| Packaging Details: | wooden box |
| Delivery Time: | 3-8workdays |
| Payment Terms: | TT |
| Supply Ability: | 3000pcs/month |
| Series: | Flap Barrier | Product Name: | Highly Led Light Flap Barrier |
|---|---|---|---|
| Material: | 304 Or 316 Stainless Steel | Chassis Thickness: | 1.5-2.0mm |
| Certificate: | CE FCC RoHS SGS | Size: | 1200*280*990mm |
| High Light: | automatic flap gate,Tripod barrier gate |
||

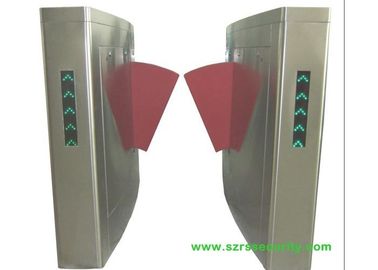

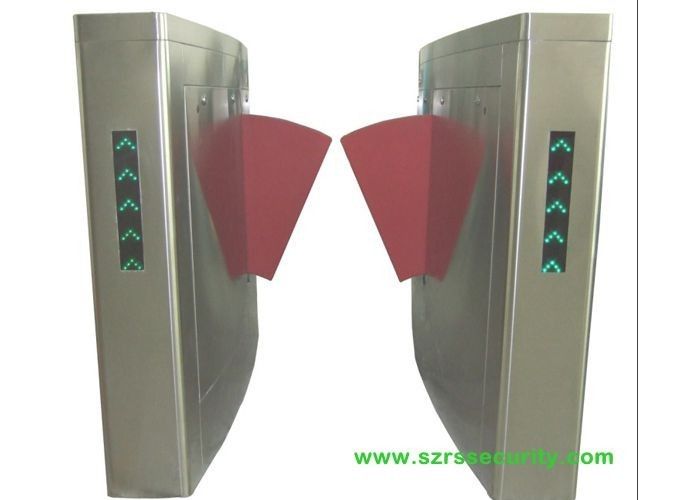

Flap turnstile By using more than six military-grade high-performance infrared detectors, you can
accurately implement functions such as anti-trailing, detection of illegal traffic, anti-clipping and bump
detection, and direction discrimination. The shell frame is made of high-quality stainless steel. The
gap between the baffle and the box is very small, and all the internal components are rust-proof and
anti-corrosion-treated to ensure their durability.
| Specifications: | |
| Framework maerial | GB 304 grade stainless steel |
| Framework size | Bridge-type round |
| Angle | L1200× W300× H1000(mm) |
| Length of the arms | 250mm |
| Wideth of the channel | 600mm(standard) |
| Working voltage | AC220± 10% V, 50± 10% Hz |
| Diving electromotor | DC brush electromotor 24V |
| Input interface | Dry contact signal or +12V level signal or DC 12V pulse signal with width of more thatn 100ms, driving current > 10mA |
| Normal life-span | 3 million times |
| Communication interface | RS 485(standard) |
| Transit speed | 30-40 person/min |
| Card reader windows | 4 pcs |
| Maintenance windows | 4 pcs |
| Time for opening or closing | 1 Second |
| Starting time after power on | 3 Senconds |
| Automatic reset time after fault | 10 Sconds |
| Working environment | Indoor, Outdoor (with a tent over) |
| Temperature | -10º C - 50º C |
| Relative umidity | ≤ 90%, no condensation |
Description:
1, With function of self-examine and alarm, it is convenient for maintenance and use.
2, Being able to program running status by the small keyboard in the main board
3, Preventing pedestrians or bicycle from being nipped and from hurt, the force of the
Pole is less than 2Kg
4, Sound or light alarm function
5, Poles are automatically locked until a opening signal is received.
6, Poles synchronization
7, Automatically reset function: It will automatically lock if the pedestrian hasn't pass
through the channel in the pre-set time after the opening. The passing time is adjustable.
8, Channels automatically open when power off, and automatically close when power on.
9, Several card reading devices are attachable.
10, One direction or bi-direction control are optional.
11, It can be directly controlled and managed by remote control.
