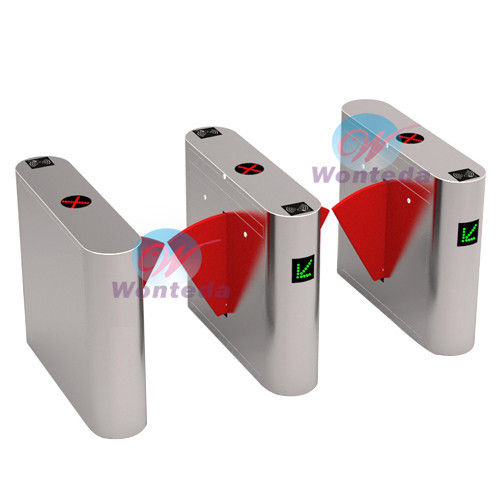

Automatic Access Control Flap Barrier Gate Retractable Anti-pinch Pedestrian Entrance Gate

Automatic Access Control Flap Barrier Gate Retractable Anti-pinch Pedestrian Entrance Gate

  • Automatic Access Control Flap Barrier Gate Retractable Anti-pinch Pedestrian Entrance Gate
Automatic Access Control Flap Barrier Gate Retractable Anti-pinch Pedestrian Entrance Gate
Product Details:
Place of Origin: Flap Barrier Made In China
Brand Name: WTD barrier gate
Certification: CE
Model Number: WTD-B607-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 10-15 day
Payment Terms: T/T ,Western Union,Paypal etc..
Supply Ability: 1000 Set/Month
Contact Now
Detailed Product Description

Product Name:

Automatic Access Control Flap Barrier Gate Retractable Anti-pinch Pedestrian Entrance Gate

Specifications

High quality automatic flap barrier gate
1.304#Stainless steel material.
2.4-9 Pairs Infrared Sensor to anti-tail, anti-clamp fingers
3.Self-recovery function.
4.Indoor or outdoor (added the rainshed) .
5.Anti-collision function.

Product Description:

    Flap barrier gate operates quite swiftly and safely,suitable for area where have a large flow of people need to be monitored. The equipment conveniently compatible with access control system, barcode cards, biology identification equipment.

Flap barrier gte provides a high level and high reliable security protection devices, alarm devices, direction indicators etc.

The  equipment widely used in airport, corporate, governmental and financial offices,museums,  bus station, supermarket,  park,  and other traffic resticted areas.

Technical Parameters :

Housing Material: 304# Stainless Steel at 1.5mm(Stainless steel 304 option)
Power AC220C±10V,50/60HZ;
Size: 1200*300*1000
Passage width 600mm
Arm length 260MM
Drive motor DC 24V brushed motors
Power  50W(single flap) 100W(double flap)
Pass speed 30-40 people per minute
Weight 85kg(single flap) 125kg(double flap)
Opening and Closing time ≤ 0.4S
Finishing surface Brushed surface (Standard) / Polishing surface
Temperature -30°C to +70 °C
Operating humidity ≤95% no condensation
Operating environment Indoor/outdoor (Shelter)
Communication Interface RS485,distance <1200mm
Input signal optional DC12V/dry contact/RS485/
Barrier Material(arm meterial) Acrylic glass, Organic glass / Tempered glass (Optional)
Traffic-light Indication 3
Housing Colour Stainless Steel Brushed / Powder Coating Colour (Optional)
MCBF 3,000,000 cycle



System function:

1 Both directions can be set as controlled mode or free mode.
Adjustable open/close speed.
3 Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
4 Self-examine Function: it is convenient for users to maintain and use.
Voice indication and illegal passing, trailing, delaying,.
6 Intruding-alarm function.
7 Anti-pinch function: protection against finger entrapment and personal injury.
8 Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
9 With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
10 4-8 couples of infrared sensors, anti-trailing, direction and position detection functions;.
11 Anti-clamp and fire alarm linkage protection.

You can custom made appearance of turstiles   can choose 316 stainless steel  or each color of iron baking varnish


size:
Automatic Access Control Flap Barrier Gate Retractable Anti-pinch Pedestrian Entrance Gate 0
