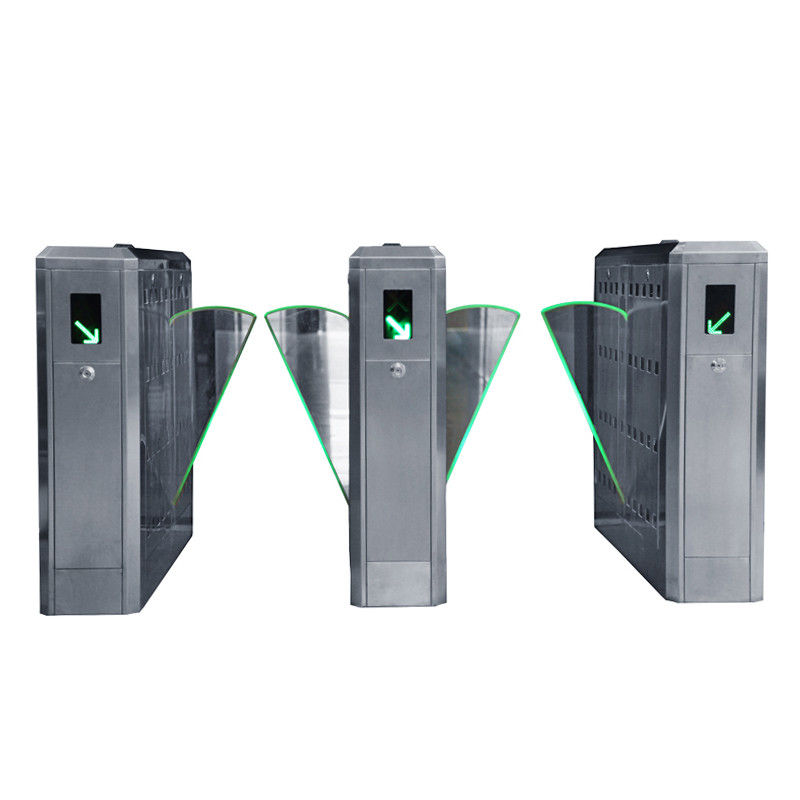

Sewo-5113 Flap Barrier Gate
Technical parameters:
Voltage | AC220V/AC110V(optional) |
Dimension | L1200*W280*H990(mm) |
Material | 304 stainless steel |
Working environment | -15°C- +75°C |
Relative humidity | <;95%,no-condensing |
Communication interface | RS485 |
Input interface | switch signal(COM to ground) |
Drive motor | direct motor 30W/24V |
Opening time | about1.2s |
Passage width | <;=600mm |
Passing speed | 45persons/min |
Passing method | single way/bi-direction |
Reading types | IC card/ID card/magnetic card/barcode |
Functions and Features:
1. The equipment can reported fault by itself, It's convenient for maintenance
2. With LED passing indicator (high light in outdoor)
3. With a open button(pressing the open button ,the flap barrier open all the time)
4. When the power off, the flap barrier will open automatically, and when the power on, the flap barrier will close automatically.(this is suitable for fire control)
5. The equipment has function of self-checking parts and wire
6. If somebody who broke into the flap barrier, the bazzer sound will alarm
7. There are trebling for anti-hitting protection
8. The model for entrance can be set freely
9. It is free to adjust the time for automatic closing the gate or delaying to close the gate
10. It can be controlled by the remote controller to satisfy the special requirements and fire requirements.
11. It is with unified external electrical interface and can be connected with different reading-writing equipments.
12. Counting function(optional)
