Place of Origin: | China |
Brand Name: | Tondahzhi |
Certification: | CE |
Model Number: | TDZ-Y209 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD 500-1500per piece |
Packaging Details: | paper carton and wooden case |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 500 pieces per month |
Wing Color: | Red | Dimension: | 1200*300*1000mm |
---|---|---|---|
MCBF: | 3,000,000 Cycle | Ommunication Interface: | TCP / IP , RS 485 |
Railing-off Against Power Off: | Available | Type: | School Gate |
Gate Opening Time: | 0.2 Seconds | ||
High Light: | Flap Barrier Turnstile,Pedestrian Turnstile Gate |

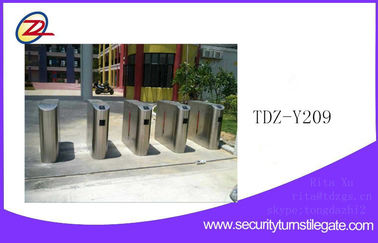

TCP / IP Interface Automatic Security Flap Gate Barrier DC Brushless Motor

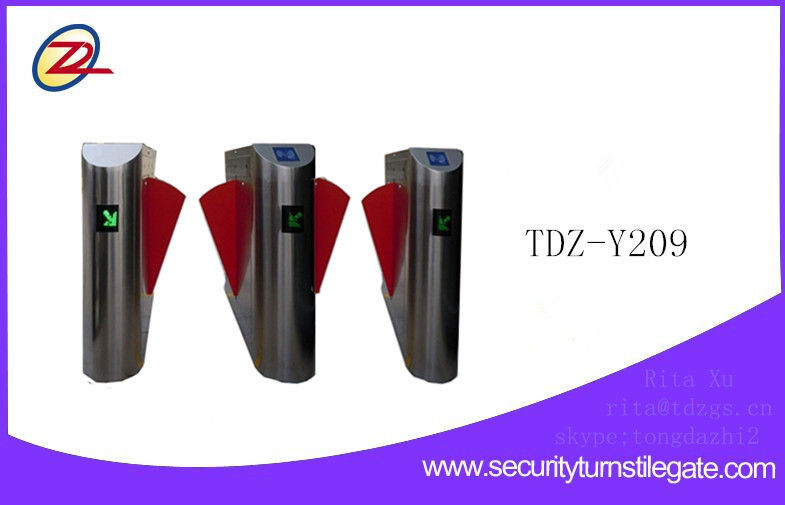

Flap Barrier Gate Product Description
Flap barrier turnstile series with innovative design, it extensive use in metro, school, office, scenic, gym, factory, residential, supermarket etc.. It can support RFID, fingerprint, facial verification mode. Combine with infrared detector, temperature controller, can widely used in all kind of different environment.
Technical parameters | |||
Power voltage | AC220±10%,50Hz | Drive voltage | DC24V 20W |
Dimension (Customized Optional) |
1200*300*980m | Communication port | RS485 |
(Operation condition) | -30°C~+70°C | Structure | Frame or 304 Stainless steel cover |
Relative humidity | no more than 95%,None-condensation | Open direction | Single and Double(optional) |
Input signal | 12v DC level or 12v pulse>100ms | Gate opening and closing time | 0.6s |
Working Current | no more than 2000mA | IP Degree | IP43 |
Length of the bar | 260mm | Width of passage | no more than 600mm |
Pass speed |
less than 30 person/minutes |
Dimension |
Flap Barrier Features and functions:
1.Elegant appearance: 304 stainless steel cabinet and the color of arms can be optional for several color.
2.Equipped with standard input/output signal interface, can be integrated with all types of access control panel, offering complete entrance control solutions.
3.Malfunction self-detection, which is easy for operation and maintenance.
4.Operational mode can be set up through the built-in menu on the control panel.
5.Flap Barrier has several sensors to detect obstructions during its movement. If an obstruction is detected during closing, the arms wing will stop its movement to prevent the user from being clamped.
6.Anti-collision function, the flaps will stay close if not receiving the open signal.
7.Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signal for emergency. It will open automatically in case of emergency.
8.Flaps reset to close position when power resume.
9.Flaps reset to lock position when access time expire.
10.Prevents Invalid/Tailgate/Wrong direction access.
11.LED Array indication for access granted/denied.
12.Compatible with diverse access control devices.
13.Pedestrian flow directions can be single or double directions.
14.RS485 socket is available to connect the computer.
Package&Shipping
1.Wooden well protection package
2.Fast way: By express,such as: DHL, Fedex, UPS, TNT, EMS...take about 3~7days.
3.Cheap way(small package):By China post,should take about 15~70days.
4.Cheap way:By Sea shipment.
Company Profile:
Shenzhen Tongdazhi Technology CO., Ltd is a new high-tech enterprise in Shenzhen China. We
work on products R&D,sales and services. We committed to providing professional channel gate
system, access control system, ticket management system and parking management system. With years
of experience and continuous technological innovation. We have the ability to provide reasonable
intelligent attendance, access control, consumer, ticket management, parking management channel
system solutions. Construction class systems engineering, quality of service and strict training system
ensure long-term, continuous, stable operation.
