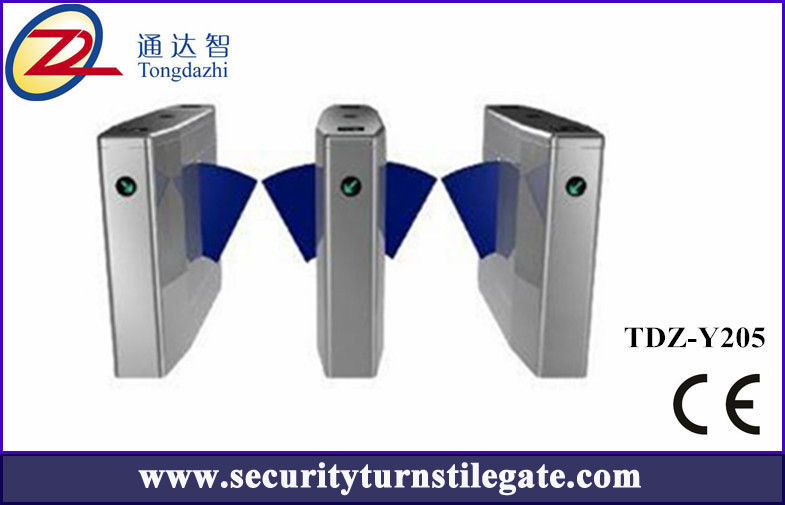

Security flap barrier gate optical turnstile access control with IC / EM cards

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD 500 -1000 / Piece
Packaging Details:	paper carton and wooden cases
Delivery Time:	3-4 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability:	200 pieces / month

Contact Now

Detailed Product Description

Material:	304 / 316 Stainless Steel	Thickness:	1.5mm
Dimension:	12003001000mm	Package Size:	12503501050mm
Weight:	70kg	Channel Width:	600mm
High Light:	Flap Barrier Turnstile , Turnstile Barrier Gate

Security flap barrier gate optical turnstile access control with IC / EM cards

Quick Details

Can be wide channel from 600 - 900mm
3 pairs of infrared sensor(standard) can install more (optional)
Indoor and outdoor used,304 stainless / 316 stainless steel (optional)
Can use with RFID,Mifare,fingerprint,bar code,facial scanner,etc access control products

Product Descriptions:

Waterproof, sunscreen, anti-temperature, anti-cold.
Access Prompt function:Red and green light prompt the passing information.
Can set a one-way or two-way control
Compatible IC, ID, magnetic card, bar code card, and other control equipment.
Control panel with counting function,LED digital display function (optional)
Pinch function, anti bumps function
Scour protection function ,when the gate signal is not received, arms keep closed
With automatic reset function,if does not pass in the set time,turnstile will get back
Normally open or closed can be freely adjusted
can be used with a variety of reading devices, work when it receive relay switch signal
Fire emergency function,after power,arms will be automaticlly opened.When on power,will be closed automatically
Sound,light alarm functin : with trepassing,trailing alarm
Fault detection and alarm function

Technical Parameters

Material	304/316 stainless seel (optional)
Fishing	Brushed surface (standard) / Polishing surface
Dimension	12003001000mm
Channel width	600 - 900mm
Drive motor	Brushless DC motor (24V)
Power supply	AC220 (110) ± 10%V,50Hz
Working life	3,000,000 times
Communication Interface	RS485 / RS232,Ethernet
Transit Speed	20 - 35 passage / minute
Work Environment	Indoor / Outdoor (Shelter)
Use Place	Station,park,apartment,school,factory,bank,building

Customized Features:

Alternative Materials, Finishes and Custom Design
Access Control System Integration
Ticket System Integration
Camera System Integration
Thermostat System Integration
Remote-Controlled Button
Usage Counters
Waterproof and Dustproof Design: IP53 for mechanical module, IP65 for electric module
SDK and technical support will be provided for Secondary development of software
