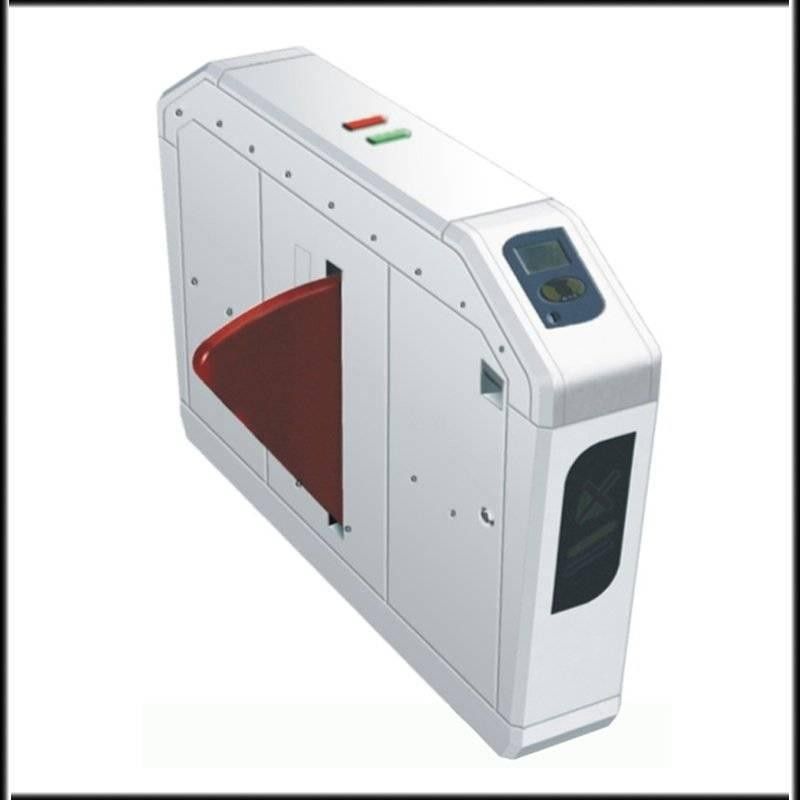

Waist high flap barrier gate

Product Description
Waist high flap barrier gate High reliable sensor Access control High-end technic design

Product Feature
Effectively control the entry and exit of the pedestrian Meet the mode of system's normal operating and reduce the different control requirement of operating mode Entry and exit of passage flow record function, deduct the fare record, blacklist using record and information output function High reliable sensor control logic to monitor the passing behavior of pedestrian, and identified the adult and child automatically Able to set the passing mode according to the flow of pedestrian ( bi-directional, single-directional, normally open, normally close) Able to work offline and save the date function Various kinds of friendly information indicated (channel indicate, ticket data indicate, alarm acousto-optic) Self-inspection, self- checking, self-alarm function Using stainless steel, elegant structure Whole blocking design, convenient for maintenance, standard communicate network interface. Industrial power can be provided the safe and reliable guarantee. The panel is in open status when the power is off.

Product Specification/Models
Retractable turnstile gate Parameters: Interface Parameters: One RS232 signal, two card reader signals(passive), one fire alarm signal Master Control Unit: Industrial computer Prevent Mode: Portal turnstile Ticket and Card Type: Non-contact IC card (Token) / value card (one card reader) Overall Dimensions: 2000L x 280W x 1050H Ticket Checking Speed: Single ticket / value ticket Ticket Retrieve Speed: One second / piece Opening Speed: Standard channel less than 0.5second; Wide channel less than 0.7 second Passing Speed: 50people /minutes (no ticket retrieve status) Reliable: MCBF () >5 millions times ( ticket retrieve status) Communication Speed: 10Mbit / 1000Mbit ( average non-fault time) Communicate Interface: 10Mbit / 1000Mbit Temperature: -10 degree ~ 50 degree Humidity: 10% ~ 95% RH ( relative humidity, no dewing) Noise (working status): Less than 55dB Lane Width: Less than 600mm Working Power: 220VAC ± 10% / 15%; 50Hz ± 4% Consumption: Static: Single machine 20W; Double machine 60W Protection Grade: IP42

Other Information
Product Description Rail transit turnstile is set at the paid district and unpaid district of stations, provide the speed passing service. The ticket checker turnstile can be accepted the self-check of non-touching type of single IC card ticket and value ticket. Effective ticket checking for pedestrian pass through can be retrieved the non-touching type of single IC card ticket. The ticket checker turnstile is made by main control unit, the pedestrian indicator, alarm light and buzzer, card read device and antenna wire, channel prevent device, ticket and card transmit / retrieve device, maintenance keyboard, move maintain terminal interface, power blocking etc.
