Place of Origin: | Shenzhen,China |
Brand Name: | WEJOIN |
Certification: | CE,ISO |
Model Number: | WJTY201 |
Minimum Order Quantity: | 2pcs |
---|---|
Price: | Negotiation |
Packaging Details: | wooden box |
Delivery Time: | 10-30 days |
Payment Terms: | Western Union, T/T |
Supply Ability: | 50PCS/week |
Gate Length: | 275mm | Maximum Lane: | 600mm |
---|---|---|---|
Flap Material: | Oganic Glass | Flow Speed: | 30~40/min |
Back-up Battery: | Yes | Bidirection: | Yes |
High Light: | security turnstiles,optical turnstile |

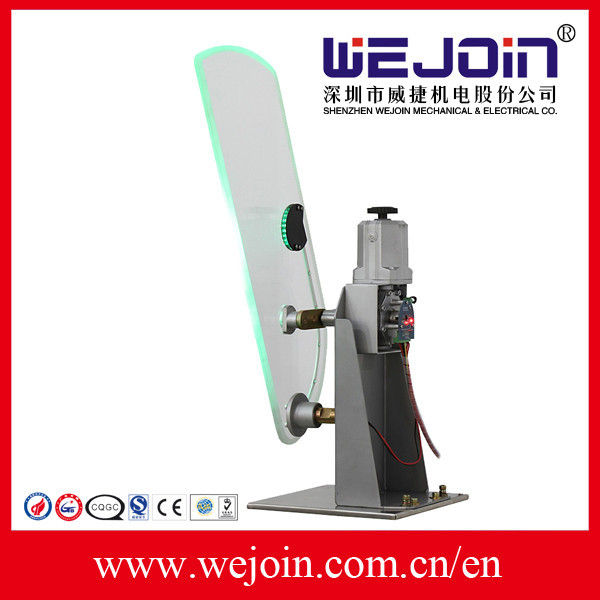

Access Control Flap Barrier half height turnstile Stainless Steel for school
Functions and Features:
1. Problem-self-checking function.
2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 5-20s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
7. Anti-rush function: If there is no open signal, arm will be holding tightly.
8. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the flap barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially. Also it will alarm.
9. Flap barrier is with standard electrical interface for the integration of various readers and writers.
10. Flap barrier can count how many passenger has passed(Optional) and will show it in the LED display.
11. Direction display to guide passenger which direction is to go.
Products Series:
Model |
WJTY201 |
WJTY301 |
WJTY311 |
Material of Housing |
304 Stainless Steel |
||
Material of Flap Door |
Organic Glass, Resin, or PVC |
||
Dimension of housing |
1200*270*1000 |
1450*315*1020 |
1400*305*1020 |
Thickness of housing |
1.5mm |
||
Max Width of Passage |
600 |
900 |
900 |
Net weight |
70kg |
140 kg |
85 kg |
Normal Life Span |
3 millions times |
||
Communication Interface |
Standard RS485(distance less than 1200 meters) |
||
Transit speed |
30-40 persons/min |
||
Power supply |
220V±10%, 110± 10% |
||
Frequency |
50/60HZ |
||
Working voltage of motor |
DC24V |
||
Time for opening or closing |
1s |
||
Starting time after power on |
3s |
||
Input interface |
Dry contact signal or +12Vor pulse signal with width more than |
||
Transit speed |
25~32 persons/min |
||
Working temperature |
-10°C~50°C |
||
Working environment |
Indoor / Outdoor (Shelter) |
||
Relative humidity |
≤95%, no condensation |
