half height turnstile

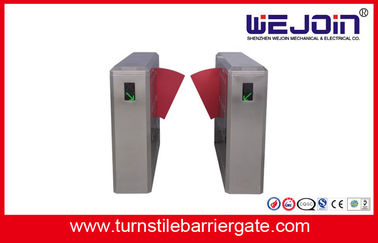

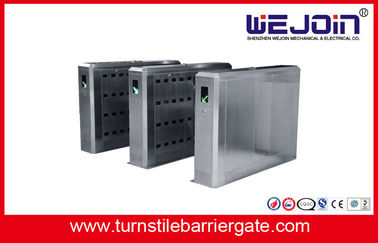

600mm Security Flap Barrier Turnstile Entry Systems Bi - direction In Aluminum Alloy

Applications:

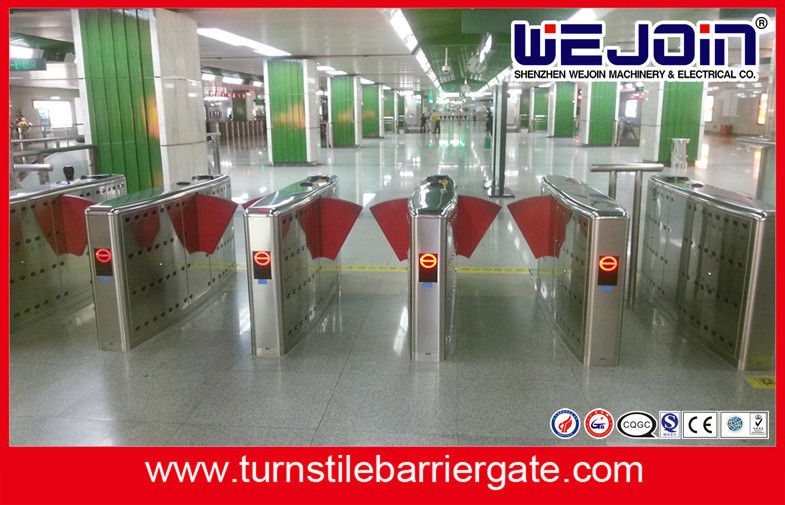

High class communities, intelligent buildings, hotels, subway stations and other high level venues.

Functions and Features:

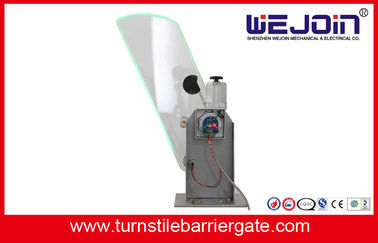

1. A compact electro-mechanical design with unique drive and a self-lock mechanism (no need regular gear clutch structure).

2.Input interface available for dry contact and switch signal connection.

3.Automatic detection for malfunctions.

4. Adjustable auto-delay closing

5. Infrared photocells for safety access

6. Alarm for unauthorized access and no access against passenger flow

7. Adjustable access directions.

8. Auto-closing when power on

9. Auto-open and free access when power off

10. Anti-reverse passing

11. No battery is needed.

12. Emergency interface available.

13. Traffic light indicating passenger access.

Technical Specifications:

1. Housing matrial: 304 grade stainless steel or painted steel(thickness:1.5mm)

2. Flap wing: acrylic glass, or resin, or PVC

3. Net weight: 70kgs/unit

4. Dimension:1200*270*1000mm

5. Barrier wing: length 275mm

6. Standard passage width: 600mm

7. Power supply:  220V±10%, 110± 10%

8. Motor: DC12V

9. Input interface: dry contact signal or 12V electric level signal or DC12V pulse signal with width of more than 100ms, driving current: >10mA

10. Normal life-span: 3 million times

12. Transit speed: 30-40 persons/min

13. Opening/Closing time:0.5 second

14. Starting time after power is on: 3 seconds

15. Automatic reset time after fault: 10 seconds

16. Working environment: indoor, outdoor(with a tent over)

17. Working temperature:-25°C-50°C

18. Relative humidity:≤90% no condensation
