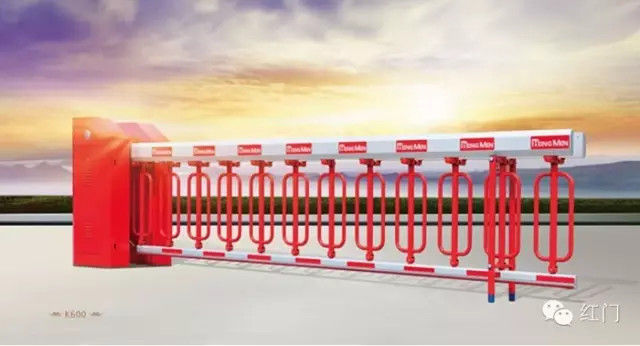

Hot Dipped Galvanized Industrial Automatic Heavy Duty Boom Barrier Gate With Fence Arm

Product Details:

Place of Origin:	China
Brand Name:	Hongmen
Model Number:	K600-R

Payment & Shipping Terms:

Minimum Order Quantity:	2 sets
Price:	USD 660 - USD 850 / Set
Packaging Details:	Iron rack plus plywood
Delivery Time:	7 working days
Payment Terms:	T/T
Supply Ability:	100sets/ month

Contact Now

Detailed Product Description

Material:	Galvanized Steel W/ Powder Coating	Colours:	Red / Blue / White / Yellow / Others
Operation:	Wireless Remote Control	Spec:	220 VAC / 250W
Motor:	AC Motor	Speed:	9s / 12s

Hot Dipped Galvanized Automatic Boom Gates Heavy Duty With Fence Arm

Features:

Hot-Dipped Galvanized Casing

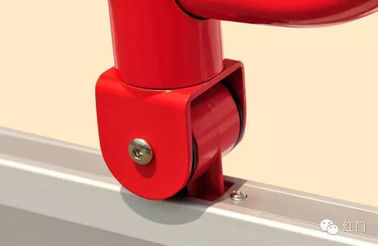

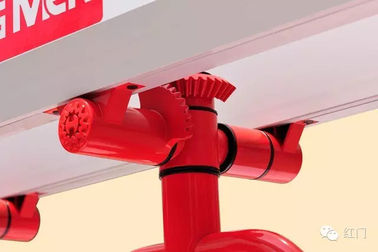

Industrial Type Fence Arm
Comes with wired push-buttons control
Comes with Anti-Collision Sensors
Able to integrate with:
1. Loop detector.
2. Photo Cells
3. Parking Management System.
4. Access Control System.
5. Card reader - proximity reader
6. long range RF reader
Auto-Close Mode.
Wireless Remote Control (433MHz).
Powder Coated With Customized Colours

Introduction:

The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
Motor cooling fan to avoid the over-heating possibility
Automatic reversing when the barrier boom meets the obstruction
RS485 Communication Module is compatible
Manual release device to operate the barrier when power failure

Specifications:

Mode No	Max Length(s)	Opening time(s)	Closing time(s)	Ground clearance of arm centre	Weight(KGS)	Output(w)	Voltage(V)	Insulation level	Working temper ature
HM-ZLG(2)-M	5	9	9	830	84	50	220AC	E	-40ºC to +80ºC
HM-ZLG(3)-M	4.5	9	9	830	84	50	220AC	E	-40ºC to +80ºC
HM-ZLG(2)-MA	6.4	13	13	893	120	50	220AC	E	-40ºC to +80ºC
HM-ZLG(3)-MA	6	13	13	893	120	50	220AC	E	-40ºC to +80ºC

Hot Dipped Galvanized Industrial Automatic Heavy Duty Boom Barrier Gate With Fence Arm 0

Warranty:

1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for 12 months from the date of delivery
3. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)
