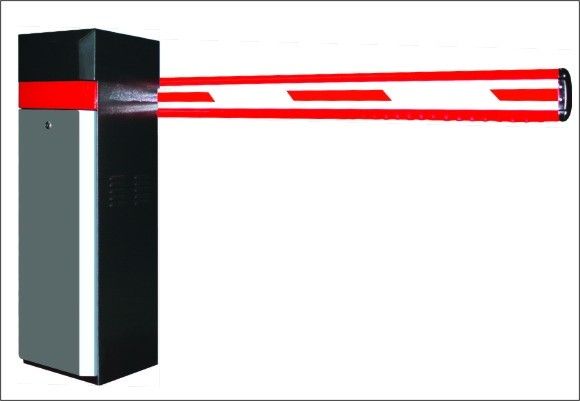

Remote Control Automatic Boom Barrier Gate D035

~Features description:
The barrier gate matches with ticket kiosk P016, with full-automatic balance tracking structure design, SCM control, in cooperation between transmission and control, it enables detection and feedback at any point of position during movement. Performance and lifespan is improved.
1. Manual button has 3 operation options “up”, “down”, “stop”.
2. Wireless remote controller can do operation like “up”, “down”, “stop” and also “lock” or “unlock” the manual button. Unlock after power off, barrier arm can be lift by hand.
3. It has self-checking mode which is convenient for maintenance and debugging.
4. Option: vehicle loop detector or IR sensor, with which it can realize some functions like “drop barrier arm automatically after vehicle passed barrier arm”, “anti-drop to car underneath”, “lift arm automatically when car is crashing to arm”
5. Option: tent, traffic light
6. Option: Optical isolation long line driver, which can be connected to computer serial communication interface RS232-C. It’ll has abundant underlying control and status link order, which makes it full controlled by toll collection system.

Technical Parameters:
Working Power: AC220V, 150W
Arm (boom) Rising and dropping time: 2-6s (optional)
Working temperature: -20cels---+85cels
Arm (boom) length: 1-6m (optional)
Working Humidity: 5%-95%
Housing size: 355X313X1035mm
