Place of Origin: | Shenzhen |
Brand Name: | JinhuaSS |
Certification: | CCC, CE, RoHS, UL |
Highlight: | remote control barrier |
---|

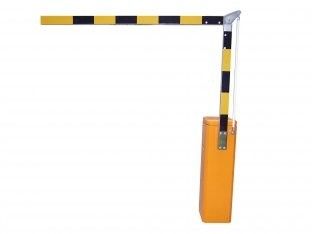

5s Outdoor electrical safety barrier, Manual Handle Boom Barrier Gate for School AC 110v
Specifications:
Supply Voltage |
AC220v+/-10% or AC110V |
Power Frequency |
50/60Hz |
Rated Power |
60W |
Rated Speed |
1500r/min |
Rated Torque |
35N. m |
Standard Lever Length |
<=4.5m |
Noise |
<=60dB |
Rising/Falling Time |
6s |
Service Life |
More than 3.5 million times |
Error Action |
<=0.01% |
Working mode |
Remove control, push button and manual handle |
Working temperature |
-25℃-60℃ , relative humidity <95%, without dew |
Working environment |
Indoor or outdoor |
Weight |
65 kgs |
Competitive Advantage:
1. use simple driving actuating mechanism to reduce mechanical failer and maintenance free.
2. equiped with high- sensibility magenet sensing limit control system
3. able to work with infrared photocells or vehicle detector , preventing vehicle from damaging
4. Special balance device to keep the lever opening vertically and closing horizontally.
5. convenient to control by remove control, manual switch, also open by handle when power off
6. the lever is made of high strength aluminum alloy covered with shining film, good performance in prompting .
7.adopt thermal protection functions to turn off the motor automatically when temperature is higher than 135℃
8. power coating with customerized color
9. able to work with straight/articulated/ fence lever
Description:
SJSPD002DZ is made of 2.5mm cold rolled plate, single phase asynchronous motor It is not only beautiful in design, but also effective in performance, outstanding among similar products for competitive price and reliable quality.
Applications:
School
Hospital
Army
Living area
Government, etc
