Name: Security flap barrier gate Rfid card reader , automatic flap barrier
Brand: Shenzhen Turnstile Technology Co., Ltd.
SKU: TDZ-Y228
Price: 1,250.00 USD
Availability: InStock

Home Products Flap Barrier Gate

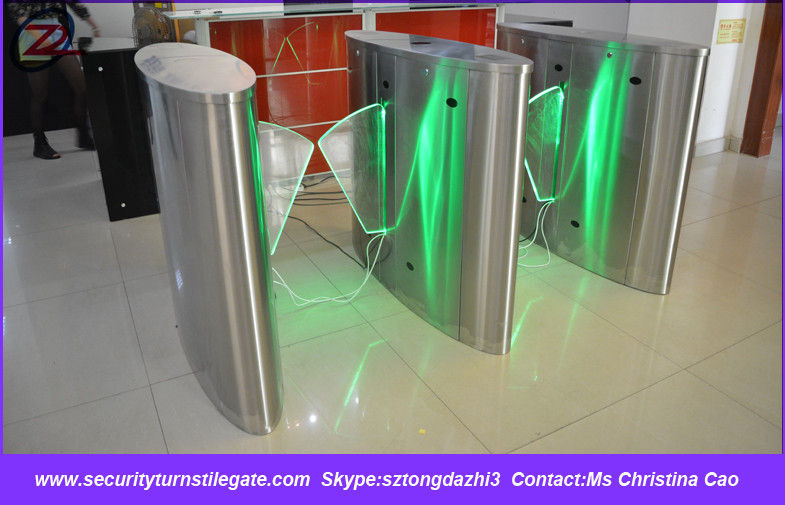

Security flap barrier gate Rfid card reader , automatic flap barrier

Product Details:

Place of Origin:	China
Brand Name:	TDZ
Certification:	CE
Model Number:	TDZ-Y228

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD 500 -2000 / Piece
Packaging Details:	paper carton and wooden cases
Delivery Time:	3-4 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability:	200 pieces / month

Contact Now

Detailed Product Description

Turnstile Operation:	Fully Automatic	Turnstile Material:	304 / 316 Stainless Steel (optional)
Dimension:	14003001000mm	Fire Safty Function:	Yes
Infrared Sensor:	5 Paris	OEM Design:	Welcome
Normal Life:	3,000,000 Times
Highlight:	Flap Barrier Turnstile

Security flap barrier gate Rfid card reader , automatic flap barrier

Rfid card reader security flap barrier gate , automatic flap barrier for bank

Quick Details

Fully automatic channel width turnstile with anti-water function
Channel width:550mm(normal lane) 800mm(handicap lane)
Control panel with counting function,LED display function (optional).
Can use with RFID,Mifare,fingerprint,bar code,facial scanner,etc access control products

Technical Parameters

Material	304/316 stainless seel (optional)
Fishing	Brushed surface (standard) / Polishing surface
Dimension	14003001000mm
Normal channel width	550mm
Drive motor	Brushless DC motor (24V)
Power supply	AC220 (110) ± 10%V,50Hz
Working life	3,000,000 times
Communication Interface	RS485 / RS232,Ethernet
Transit Speed	20 - 35 passage / minute
Work Environment	Indoor / Outdoor (Shelter)
Use Place	Station,park,apartment,school,factory,bank,building

Function Specifications:

◆ Both directions can be set as controlled mode or free mode.

◆ NO mode & NC mode can be switched over by users easily & freely.

◆ Self-recovery function: the machine will recovery automaticlly with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).

◆ Self-examine Function: it is convenient for users to maintain and use.

◆ Tailgating-detection function.

◆ Intruding-alarm function.

◆ Anti-pinch function: protection against finger entrapment and personal injury.

◆ Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.

◆ With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.

◆ Each machine can be set by Physical Address (Optional).

◆ Equipped with free control software for man-machine interface & control command SDK.

Applications:

◆ Office building
◆ Government
◆ School
◆ Hotel
◆ Super market
◆ Bank
◆ Park

Security flap barrier gate Rfid card reader , automatic flap barrier 0

Our Service

Our service

1. One -stop security solution provider, can help you save time and costs.

2. Good quality with competitive price, offer OEM and ODM service.

3. Professional technical supports and great after-sales service.

4. Custom design shape and logo,for large amount, custom logo available for free.

5. Fastest delivery and safe shipping way.

6. Warranty: One year Warranty, from the date of delivery, a lifetime technical support.

7. Feedback quickly: 24 hours online service and reply your inquiry within 8 hours.

8. We could provide Online supports for you when need supports on testing.

Payment Terms

TT, Western Union, Cash

Shipping Way:

1. Fast way: by express courier,door to door, such as DHL, FedEx, UPS, TNT, EMS.
by air, to airport

2. Cheap way: by sea shipment.
