Aluminium Swing Wireless Bi Folding Gates For Bungalow With Remote Control

Product Details:

Place of Origin:	China
Brand Name:	Hongmen
Certification:	CE
Model Number:	HDR51B

Payment & Shipping Terms:

Minimum Order Quantity:	L=3.5m * H=1.5m
Price:	USD3,500 / Set
Packaging Details:	Iron rack plus plywood
Delivery Time:	10 Working Days
Supply Ability:	30.00m/month

Contact Now

Detailed Product Description

Material:	Aluminium Alloy	Cladded:	Timber
Colour:	Powder Coated With Multiple Choices	Operation:	Wireless Remote Control
Wireless Band:	430Mhz / 433MHz	Motor:	220V AC / 36V DC
Add On:	Anti-Climb / Anti-Collisions
High Light:	Motorised Sliding Gate , bi fold gates

Aluminium Swing Wireless Bi Folding Gates For Bungalow With Remote Control

Features:

CE Certified.
EMO Button (Emergency Stop Button).
Industrial Grade Aluminium Alloy (6063-T5).
Wireless Remote Control (433MHz).
Powder Coating
Dispatch In Modules Form (Transportation Friendly).
Smart Power Outage Clutch.
Anti- Collision IR Sensor.
Anti- Climb Photo Cell.
Suitable for:
- Villa / Bugalow Entrace
- private car garage entrance
Bi-Fold - Maximize EOL (Effective Opening Length)

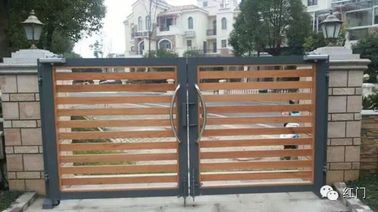

Aluminium Swing Wireless Bi Folding Gates For Bungalow With Remote Control 0

Specifications:

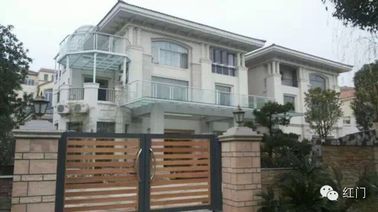

Aluminium Swing Wireless Bi Folding Gates For Bungalow With Remote Control 1

Material Specification:

Description	Material	Hardness (HW)	Specification (mm)
Front Gate Frame	Q235	/	200200d5.0
Rear Gate Frame	Q235	/	200200d3.0
Auxiliary Gate Frame	6003-T5	10-13	2.525d1.5
Slide Bar	6003-T5	10-13	12074d2.5
Upright Post	6003-T5	10-13	12085d2.5

Technical Specification:

Operation Voltage	220V± 10%, 50Hz-60Hz
Operation Temperature	-25ºC to +70ºC
Environment Humidity	< 90%
Operation Speed	16m/min
Motor Power Rating	250W
Motor RPM	1400r/min
IP Rating	IP44
Insulation Grade	F
Speed Reduction Ratio	1000: 1
Remote Distance	50m (empty space)

Pictures:

Warranty:

         1. Drive Motor is warranted against manufacturer’s defect for lifetime
         2. Standard warranty for all components is valid for 12 months from the date of delivery
         3. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)
