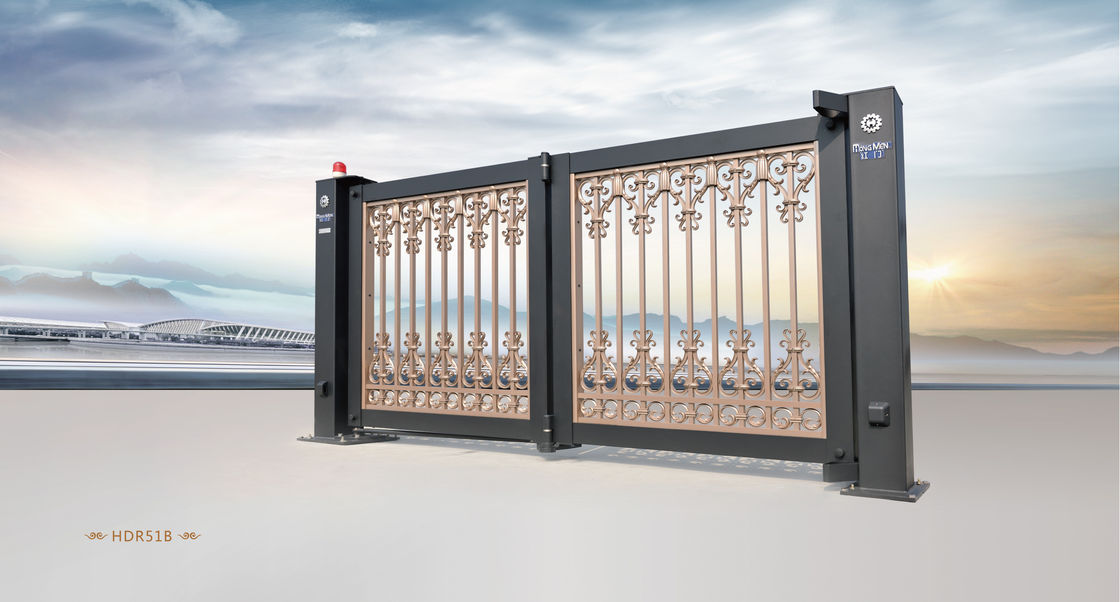

Electric Trackless Stadium Entry Swing Automatic Bi Fold Gates Trackless

Product Details:

Place of Origin:	China
Brand Name:	Hongmen
Certification:	CE
Model Number:	HDR51B

Payment & Shipping Terms:

Minimum Order Quantity:	L=3m * H=1.5m
Packaging Details:	Iron rack plus plywood
Delivery Time:	10 Working Days
Supply Ability:	30.00m/month

Contact Now

Detailed Product Description

Highlight:	Electric Bi Folding Gates

Electric Trackless Stadium Entry Swing Automatic Bi Fold Gates Trackless

Features:

CE Certified.
EMO Button (Emergency Stop Button).
Trackless Operation.
Industrial Grade Aluminium Alloy (6063-T5).
Wireless Remote Control (433MHz).
Powder Coating
Dispatch In Modules Form (Transportation Friendly).
Smart Power Outage Clutch.
Anti- Collision IR Sensor.
Anti- Climb Photo Cell.

Specifications:

Electric Trackless Stadium Entry Swing Automatic Bi Fold Gates Trackless 0

Material Specification:

Description	Material	Hardness (HW)	Specification (mm)
Front Gate Frame	Q235	/	200200d5.0
Rear Gate Frame	Q235	/	200200d3.0
Auxiliary Gate Frame	6003-T5	10-13	2.525d1.5
Slide Bar	6003-T5	10-13	12074d2.5
Upright Post	6003-T5	10-13	12085d2.5

Technical Specification:

Operation Voltage	220V± 10%, 50Hz-60Hz
Operation Temperature	-25ºC to +70ºC
Environment Humidity	< 90%
Operation Speed	16m/min
Motor Power Rating	250W
Motor RPM	1400r/min
IP Rating	IP44
Insulation Grade	F
Speed Reduction Ratio	1000: 1
Remote Distance	50m (empty space)
