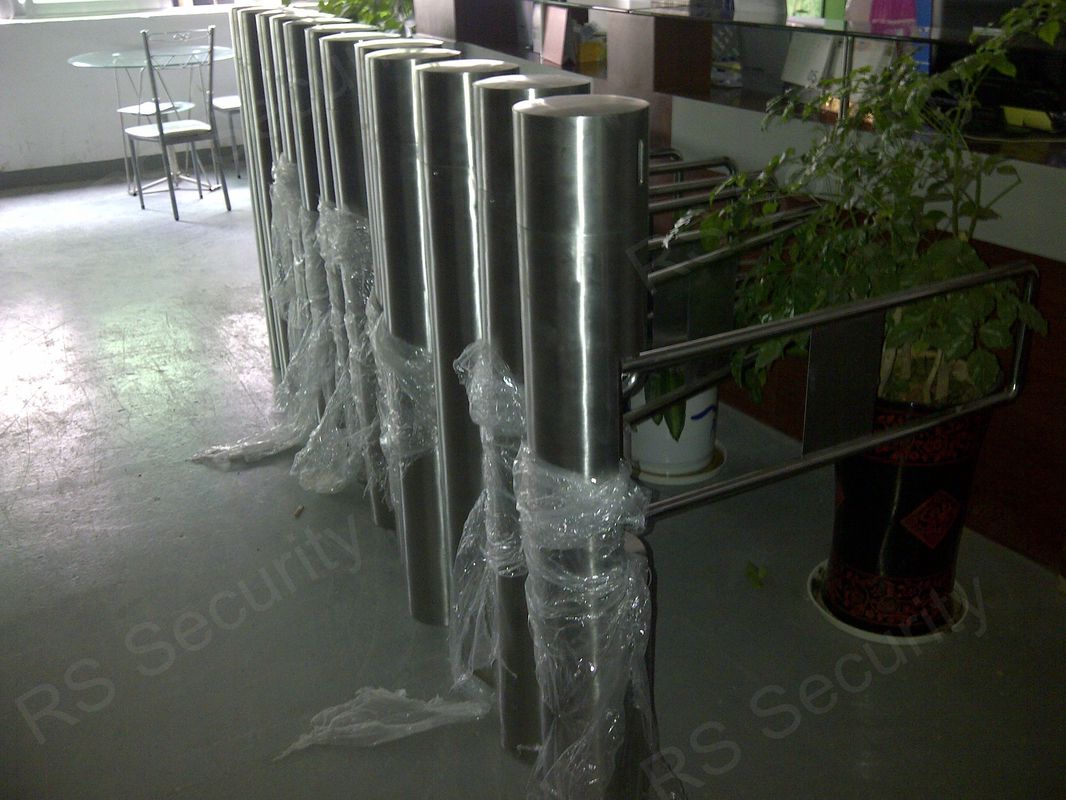

Bi-direction Smart Automatic Supermarket Swing Gate High Security Turnstiles

Product Details:

Place of Origin:	China(mainland)
Brand Name:	RS Security
Certification:	ISO,FCC,SGS,RoHS,CE
Model Number:	RS 316-2S

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	1000 USD
Packaging Details:	wooden box
Delivery Time:	3-8workdays
Payment Terms:	TT
Supply Ability:	2000pcs/month

Contact Now

Detailed Product Description

Series:	Swing Gate	Material:	304 Or 316 Stainless Steel
Chassis Thickness:	1.5-2.0mm	Size:	1200280990mm
Protection Grade::	IP44	Colors::	Bright Silver Grey And Black, Or Custom
High Light:	stainless steel barrier , security gate barrier

Bi-direction Smart Automatic Supermarket Swing Gate High Security Turnstiles

OEM Service

The standard length of the gate(swing turnstile) arm is 900mm, and we offer OEM service to our

customers according to different requirements

Dimension	diameter 168*1050mm
Stainless Steel Specification	Body: SS304
Swing arm length	600-900mm
Power Supply	AC110V±10V,60Hz / AC220V±10V,50Hz
Swing direction	single
Swing arm rotation angle	180 degree
Passing Speed	40 persons/min (normal open) 30 persons/min (normal close)
Response Time	1s
Input Interface	+12V electrical signal or DC impulse signal with width >100ms
Communication Interface	RS485/relay signal
Operating Temperature	-15°C ~ 50°C
Related Humility	<=95%
Package	Paper Carton/Wooden Box

Features:

. Aesthetics
. Elegant design
. Rounded forms and glass obstacle
. Quality of finish
. Bright, modern pictograms

. Security
. Secure and reliable detection system
. Retractable obstacles allow fast closure of the walkway
. Mechanical locking, preventing forced opening

. Protection of users
. Numerous electronic safety cells
. Permanent control of the movement of the obstacle
. Protection against finger entrapment and physical injury
. In case of emergency, the passage is opened by intrinsic mechanical energy

. Reliability
. Long lifecycle and reduced operating costs
