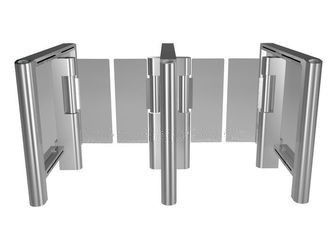

Auto Reset Bi-Direction Supermarket Swing Gate Barrier Pedestrian Turnstile
♦ Lane Width
The lane width can be custom-made for larger size, and the maximum can be 900mm, but the length might
need to be changed according to the lane width.
| ►Power Supply (Included) |
| Enclosure |
Black mild steel, wall mounted, 330mm (13”) x 200mm (8”) x 136mm (5.5”) |
| Modules |
Dual or quad 24Vdc 2.5A overcurrent fold back |
| Input voltage |
100-240Vac, 60/50Hz, 5A fused spur connection |
| Approvals |
UL 60950-1 CSA C22.2 No. 60950-1-07 second edition |
| ►Access Control Inputs |
| Voltage-free contact; |
Entry request (NORMALLY OPEN closing for 1 second) |
| 1mA current sense |
Exit request (NORMALLY OPEN closing for 1 second) |
| Screw terminal connector |
Visitor entry (NORMALLY OPEN momentary closing contact) |
| Max conductor CSA 16AWG/ 1.5mm2 |
Visitor exit (NORMALLY OPEN momentary closing contact) |
| Fire panel integration input |
Opto-coupled Input12-24Vdc @ 25mA nominal |
| Ethernet connection |
RJ45 TCP/IP Port |
| ►Access Control Outputs |
| Voltage-free contact; |
Entry monitor (NORMALLY CLOSED opening for 1 second) |
| Contact Rating 28Vdc 0.5A |
Exit monitor (NORMALLY CLOSED opening for 1 second) |
| Screw terminal connector |
Alarm 1 (NORMALLY CLOSED opening for 1 second) |
| Max conductor CSA 16AWG/ 1.5mm2 |
Alarm 2 (NORMALLY CLOSED opening for 1 second) |
Features and Function of Swing Barrier:
1.304 stainless steel, Appearance design, generous, beautiful, humanized design. Appearance can be
custmized;
2.High-performance integrated control panel, strong anti-interference ability, Stability System , Drive
module does not heat, Low power consumption;
3.By small buttons on SRU, can set the device's operating status;
4.Anti Pinch, anti bumps function:When obstacles encountered in the process of arm resetting, motor
stops or open again;
5.Scour protection function: When the open signal is not received, arm will be locked after 5 degrees
rotation ;
6.Automatic reset function: After turnstile opened, not pass within a specified period of time, the system
will automatically cancel the access privileges of users;
7.Read the card with memory and without memory function: Users can be set using the key board
according to their needs;.
8.Audible alarm function:Including unlawful entry, trailing alarm;
