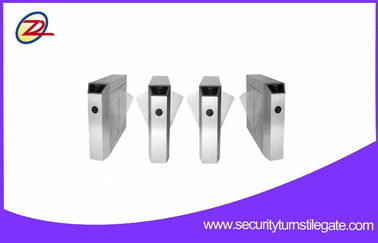

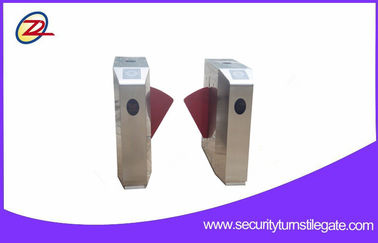

Full Automatic Flap Barrier Gate Security Access Control System
Specifications

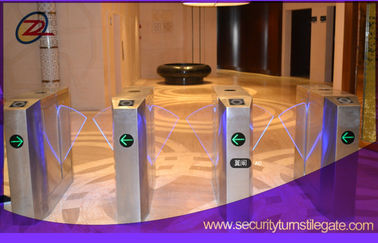

A turnstile is a gate-like structure consisting of many horizontal posts which can rotate to either allow access to users, or to stop users from entering a restricted area. They are used most commonly in train stations, airports, theme parks, museums and office lobbies.
| Framework |
304(standard)/316 grade stainless steel |
| Dimensions |
Vertical turnstile:600*280*1000mm |
| Bridge turnstile:1200*300*1000mm |
| Channel Width |
600mm |
| Weight |
70kg. |
| Operating Mode |
one-way or two way control |
| Power supply voltage |
AC220 ± 10%V, 50HZ |
|
Motor
|
0.5NM/24V(Fully Automatic)
|
| Interface |
standard RS485/distance≤1200m or TCP/IP. |
| Gate opening time |
0.2 second |
| Transit speed |
30-40 persons per minute |
| Working environment |
indoor or outdoor |
| Temperature |
-10 Celsius to 50 Celsius |
| Relative humidity |
:≤90% no condensation |
|
Protection Grade
|
IP54
|
|
Colour
|
Stainless Steel Brushed / Powder Coating(Optional) |
| Operation Place |
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control
|
related products
| 1. Available in single walkway or bi-directional passage.Both directions can be set as controlled mode or free mode. |
|
2. Self-recovery function:the machine will recovery automatically with invalid counting if passage is not completed within pre-set time(5 seconds default,adjustable by software).
|
|
3. Multi-alarm function:When arms are pushed by force illegally,alarm will be triggered automatically and the center rotor will be set locked(the duration of the alarm and lock is adjustable by software).
|
|
4. Emergency escape function:the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
|
| 5. Smart card reader compatible with a variety of card such as IC and ID card. |
|
6. Can be expanded to automatic identification system,realizing function to access control,
pedestrian flow control,attendance check or fare collection.
|
|
7. Equipped with international standard electrical interface,can be easily integrated with other R/W device,also can be controlled and management through remote supervision computer.
|
| 8. Control panel with count and LED digital function. |
| 9. Optional traffic-light: A Red Cross symbol will illuminate to indicate unit is not available for pass, and a green arrow indicate the direction of allowable pass. |
Q:On power,but turnstile gates take no action
1)Q: Zero light of the control board and the power indicator light turns red,normal, but motor does
not
move
A.Detecting the motor terminals MA, MB at both ends if there is voltage output (DC24V).
If there is output, detect whether electrical connection is sealed off or not;Check whether motor are
damaged or not,red and black wire of the motor connected directly to battery;
B.If the above checks are normal,movement may exist stuck state,first access red and black cable of
motor to battery,let the arm back to zero,then recovery the red and black wire of motor,with a manual
switch
test.
If arm will have action,but not smooth,it means movement has hit damage,should repair movement.
2) Zero position of control board indicator and power indicator turn red.Oneyellow LED
is light in left in place or right in place,
shows zero limit board has problem,need to change zero limit board.
