Name: Intelligent 0.9s Falling Protection Automatic Traffic Barrier Gate for Highway
Brand: Shenzhen Turnstile Technology Co., Ltd.
SKU: SJSPD003A
Availability: InStock

Home Products Boom Barrier Gate

Intelligent 0.9s Falling Protection Automatic Traffic Barrier Gate for Highway

Product Details:

Place of Origin:	China
Brand Name:	Centuryfair
Certification:	CE
Model Number:	SJSPD003A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export standard carton
Delivery Time:	7-10 days after payment confirmed
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	800 pcs per month

Contact Now

Detailed Product Description

Opening/closing Time:	0.9s	Color:	Customizable
Life Cycle:	More Than 5 Million Times	Motor Type:	Torque
Controller:	Microprocessor Type	Support:	Loop Detector, IR Sensor, Traffic Indicator
Service:	OEM/ODM Available
Highlight:	car park barrier

User manual for toll gate.pdf, Catalogue-Toll Gate SJSPD003.pdf

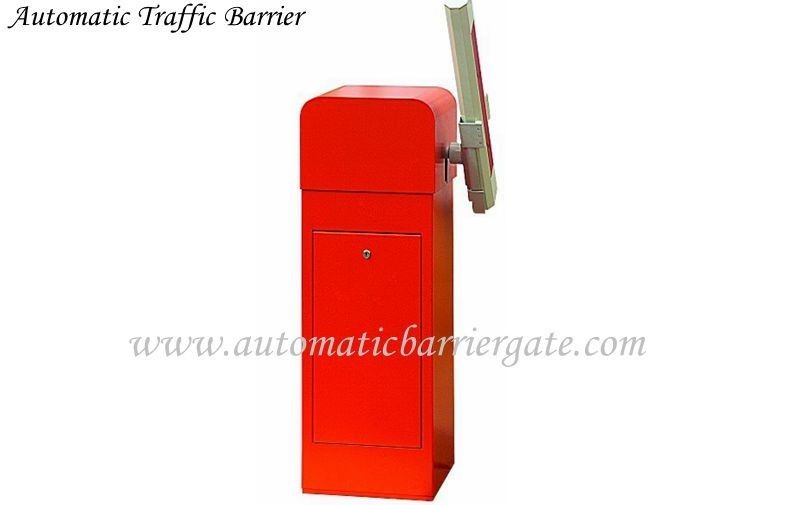

0.9s Falling Protection Highway Automatic Traffic Barrier Gate 50 / 60Hz

Description:

SJSPD003A employs special torque motor and master controller with high integration and stong logic function. Multiple working modes to meet different demands and several interfaces for external device.

Specifications:

Supply Voltage	AC230V or AC110V
Power Frequency	50/60Hz
Rated Power	80 W
Rated Speed	30r/min
Rated Torque	12N. m
Standard Lever Length	<=2.50m straight lever
Noise	<=60dB
Rising/Falling Time	0.9s
Service Life	more than 5 million times
Error action	<=0.01%

Competitive Advantages:

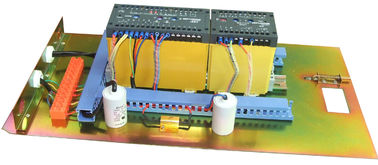

1. The master controller employs the hi-reliable microprocessor

a. high integration and strong logic function

b. multiple operation modes available

c. several interfaces for external devices available

2. The core technology employs the special AC220V torque motor

a. maintenance-free motor, work normally under extremely climates

b. use sine generator to reduce mechanical failure greatly

c. power protection in case of instant heavy current, voltage fluctuation

3. All-round safety protection

a. collision prevention

b. LED traffic signal (optional)

c. infrared ray protection (optional)

d. remote control (optional)

e. falling protection (optional)

Additional Information:
    Package: export standard wood carton
    Delivery date: 7-10 days after payment confirmed
    Payment terms: 50% T/T in advance, the balance 50% paid before shipment
    Approval: CE, CCC
    Factory support : ISO 9001: 2008
    OEM/ ODM service acceptable
