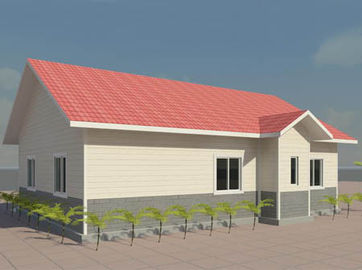

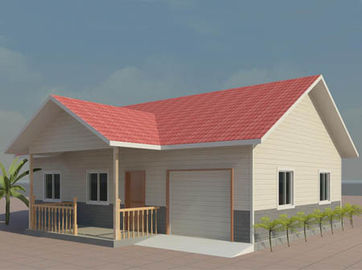

Portable Steel Frame Structure 4 / 3 Bedroom Modular Homes , Mobile Light Steel Villa

Product Details:

Place of Origin:	Shaoxing Zhejiang China
Brand Name:	PTH
Certification:	ISO, CE, BV
Model Number:	PTW4P175

Payment & Shipping Terms:

Minimum Order Quantity:	200sqm
Price:	Negotiable
Packaging Details:	Flat packing of steel house, steel keel packed in bulks, so do the wall panel, roof panel and other materials, all loaded into 40'HQ
Delivery Time:	One month
Payment Terms:	L/C T/T
Supply Ability:	10000sqm per month

Contact Now

Detailed Product Description

Material:	Steel	Size:	Custom Made Layout
Color:	White, Blue, Red	Weight:	Light Weight Structure
Life Span:	More Than 50 Years
High Light:	prefab modular homes , prefabricated modular house

Portable Steel Frame Structure 4 / 3 Bedroom Modular Homes , Mobile Light Steel Villa

Quick Detail:

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 50 years.
2)Earthquake resistance: Max. more than 8 grades.
3)Wind resistance: max 64m/s.
4)Fire resistance: all the materials used can be fire resistance.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation: 100 mm in thickness can match 1 m thickness of brick wall.
7)High acoustic insulation: 60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Technology Design Details:

(1) AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
(4) ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Applications:

Carport, Hotel, House, Kiosk, Booth, Office, Sentry Box, Guard House, Shop, Toilet, Villa, Warehouse, Workshop, Plant, kitchen, corridor.

Specifications:

(I)	Primary structure of Steel house
	Light steel keel	Wall system: 140 or 89mm; Roof system: 70mm(Q550 Zn-Alu. T=0.75~1.5mm)

Light gauge steel channel

Specifications of Steel house
External Lenght			Max. 20000mm
Internal Lenght			Max. 15000mm
Height			3000mm
Area			Custom made layout

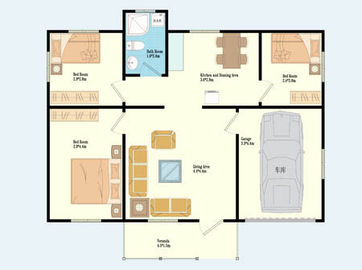

bedroom	parlor		Dining room	kitchen	toilet	study	porch
Yes			Yes	Yes	Yes
Roof		Decorative layer: asphalt shingles, color steel glazed tile, metal color stone, resin tile
		Waterproof layer: breathable film , felt paper, PE material
		Insulation: EPS sandwich panel, PU sandwich panels, glass fiber sandwich panel
		Purlins: rectangular tube pipes or c-shaped steel
		Roof truss: C profile light steel keel(70mm , T=0.75mm and above), retangular tube, pipe truss, truss angles
		Ceiling; PVC ceilings, plaster ceiling, calcium silicate board + keel, gypsum board + keel
Wall		Decorative layer: PVC cladding, PU metal cladding, single metal cladding, calcium silicate board, WPC cladding
		Insulation: EPS sandwich panel, PU sandwich panel, glass fiber sandwich panel
		Ring beam: C profile light steel kee(89mm or 140mm, T=0.75mm and above), cold rectangular tube pipe truss
		Steel colum: cold rectangular, hot rolled steel H
Floor		Decoration: PVC flooring, carpet, laminate flooring, solid wood flooring
		Floor: Calcium silicate board, OSB board, galvanized deck + concrete
		Insulation layer: glass fiber
		Floor purlin: rectangular pipes and C-shape steel
		Floor beam: retangular tube, pipe truss, truss angles, hot rolled steel H
		Ceiling: calcium silicate ceiling

Fittings for steel house

No.	Item	Materials	Luxury house
1	Kitchen and bathroom	Kitchen cabinet	high quality cabinet
		wall cabinet	high quality wall cabinet
		counter top	stone counter top
		Sink	high quality stainless sink with faucet
		toilet	high quality ceramic toilet
		bathtub	high quality ceramic bathtub
		shower	high quality integrated shower
2	Doors and windows, plumbing	Exterior door	security door
		windows	Double/single glass Alum. Or PVC Windows
		interior door	high quality MDF door
		hot&cold water pipe	high quality PPR PIPE
		Downpipe	high quality PVC downpipe
3	Electrical system and multi media	telphone cable	included
		TV. CABLE	included
		internet cable	included
		electrical cables	included
		lighting	ceiling light
		distribution box	Included
		switch	Included
4	Others	INSTALLATION FEE	Optional
4	Others	SUPERVISOR	Optional

Description:

Based on FrameCAD system, we provide a Turnkey Solution for your Light Gauge Steel House project

ISO standard light gauge steel for main structure. one or two also three floors available. fireproof, heat insulation, wind and earthquake resistance. green, energy save. economically.

PTH is a professional integrated building supplier, focusing on the new building system - light gauge steel(LGS) framing system and its design, manufacturing and installation.

PTH LGS building system provides a Turn-Key solution on LGS housing roof, which can provide the customers with numerous values, including excellent thermal insulation, light weight, high strength, easy installation, beautiful appearance and long useful life.

Available Wall Options for Steel House

A variety of wall combination forms can meet customers’ different requirements. All kinds of ductworks can be laid in pre-reserved wall holes and prevent the wall being destroyed. The wall is stuffed with fiber glass insulation, and exterior wall is laid with XPS insulation and other materials, which can make thermal and acoustic insulation more effective.

Available Floor Options

A variety of ductworks and HVAC pipeline are installed inside the floor, which will reduce the building’s storey-height occupancy, and thereby, improve the house’s space ratio.

Foundation System

PTH LGS Housing System can take simple forms as its foundation and lower cost on a large scale for its light weight. Unique foundation insulation design can efficiently prevent underground moisture and harmful gas from invading.

Competitive Advantage:

1. easy to install ---- all the fixed holes and pipe holes are prepunched,2-3 worker can finish the installation.(save 70% labor cost, shorten 10% construction period, fasten 30% the construction process)

2. Fire and insect resistance ----- All the keels are galvanized, no need to use pesticide, preservative or glue. The wall system is filled with anti-fire glass wool and the steel itself is anti-fire.

3. Prefabricated ------ our factory will first manufacture all the keels and then prefabricate the walls and last pack them.

4. Heat insulation ------ the steel wall system is not affected by the temperature or humidity so that the more heat and air conditioner utility kept in the house, the more energy will be saved.

5. Wind &seismic resistance ----- the firm connection and the hardness of the steel itself can against the seismic and hurricane to a large extend.

Steel’s high tenacity make it the best building material to resist the seismic.

1. Artistic and comfortable ----- the inner decoration is as per your wish. And the air quality is good.

7. Energy conservation and environment protection ------ only 1% construction wastes. The recycling rate of the steel reaches 70%. What’s more, until the house life is over, the steel can still be used.

Checking &Packaging

Packing: one independent project (such as wall, truss, decking, chassis) packed in a small package, every community packed in a big package.

Encasement: 20 or 40 chi shipping container.

Roof and gutter system

Portable Steel Frame Structure 4 / 3 Bedroom Modular Homes , Mobile Light Steel Villa 0

Packing& Delivery

Portable Steel Frame Structure 4 / 3 Bedroom Modular Homes , Mobile Light Steel Villa 1
