Place of Origin: | Hangzhou,Zhejiang Province,China |
Brand Name: | Zoneray |
Certification: | CE & TüV ISO 13485 Certificate |
Model Number: | HL-AH G8 |
Minimum Order Quantity: | 10 Set/Sets |
---|---|
Price: | 135USD |
Packaging Details: | 6sets/carton 1 set package as below: Gross Weight:2.1KG SIZE: 0.26*0.22*0.19m 1 carton package as below:Gross Weight:13.3KG SIZE:0.45*0.27*0.58m |
Delivery Time: | 7 working days after receive total payment |
Payment Terms: | T/T,Western Union,MoneyGram |
Supply Ability: | 5000 Set/Sets per Month |
Highlight: | Dental Amalgamator |
---|
Packaging Details: | 6sets/carton 1 set package as below: Gross Weight:2.1KG SIZE: 0.26*0.22*0.19m 1 carton package as below:Gross Weight:13.3KG SIZE:0.45*0.27*0.58m |
---|---|
Delivery Detail: | 7 Days afte receive the total payment |
dental amalgamator manufacturer
1.Time:1-99S
2.Speed:2800-5000rpm
3.Noiseless, very stable operation.
4.CE certificate
We are amalgamator machine manufacturer
Patent No. ZL200520014942.1
All products have passed CE certification
Suitable for all the capsules sold in the world
Service: OEM & ODM

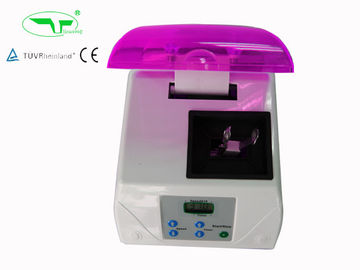

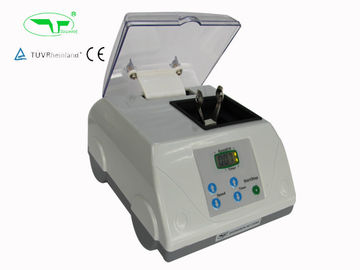

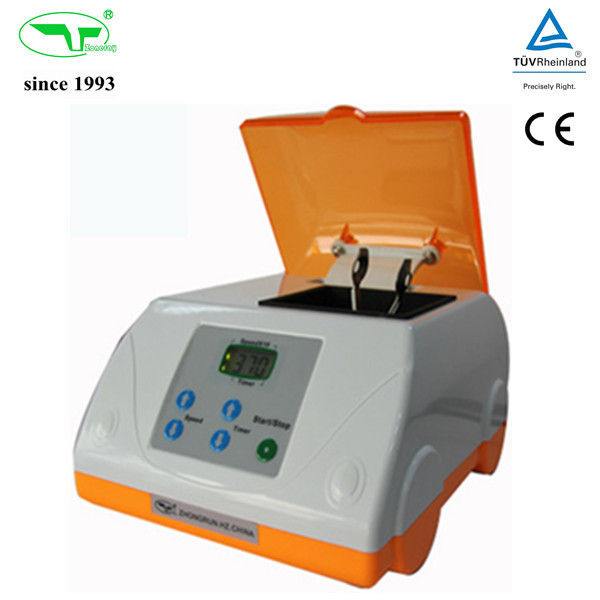

Noiseless G8 dental amalgamator machine / dental instrument amalgam with CE
1.INTRODUCTION
HL-AH G8 Amalgamator, which controlled by a microprocessor to ensure a precise, controlled, consistent mix. With wide oscillating range (adjust any Speed as your desire from 2800 rpm to 5000rpm; time from1S to 99S), it is suitable for all the capsule and glass ionomer sold in the market. For safe operation, the motor will stop, when the mask is open. It with rubber pad to avoid dust, liquid, and capsule fall into. It can satisfy different customers’ requirements. It hasTÜV EN ISO13485:2003+AC:2009,CECertificate
2.REMARKS:
1.This kind of amalgamator, controlled by a microprocessor, ensures a precise, controlled, consistent mix.
2.With the width of the oscillating range, the mixing frequency, and your selected time(1-99S).
3.It's revolve according to "8" model.
4.For mercury-based fillings. trust the performance of HL-AH(G8) amalgamator. Together, it provides the clinical perfection you need with the ease-of-use you want.
5.For safe operation, the HL-AH(G8)deactivates when you open the front cover to access the capsule.
6.Its ergonomic design is easy to use, stable, extremely quiet and easy to clean and maintain
3.TECHNICAL PARAMETER
1)Power voltage:AC 110V, 60 Hz
AC 120V, 60 Hz
AC 220V, 50 Hz
AC 230V, 50 Hz
AC 240V, 50 Hz
2)Motor power: 40W
3)Blending speed: adjust any speed as your desire from 2800rpm to 5000rpm
4)Range of timing: 1-99S
5)Noise level: less than 65db (A)
6)Gross weight: 2kg
7)Size: 260*220*190mm
4.Feature:
5.Scope of application:
It’s used to treat decayed tooth and mix dental restorative materials such as amalgam capsule.
6.Part list:
NO. | Name | Number |
1 | Main frame | 1set |
2 | Warranty Card | 1piece |
3 | Spring | 2pcs |
4 | Fuse | 2pcs |
5 | Manual | 1piece |
6 | Quality Certificate | 1piece |
7.After-sale services:
two years warranty.(Caution: forks, tensions springs, damper springs are not in the warranty list.)
8.OPERATION PICTURE
8.Our strength of amalgamator
Now in Chinese dental market, only our amalgamator can mixer all the capsules sold in the world, especially the one with pocket outside the mercury.
9.Amalgamator series comprehensive performance comparison.
Specification | Speed | Timing Range(s) | Whole weight(g) | Dimensions(mm) |
HL-AH G5 | ≥4200rpm | 4-60 | 2600 | 285*245*225 |
HL-AHG6 | High speed≥4200rpm Low speed:2800rpm | 4-60 | 2600 | 285*245*225 |
HL-AH G7 | 2800~4700rpm/m | 3-60 | 2000 | 260*220*190 |
HL-AH G8 | 2800~5000rpm/m | 1-99 | 2000 | 260*220*190 |
10. 3 Colors for your choice
Welcome to Our Beijing,Shanghai,Guangzhou & IDS Exhibition
Our Factory and technical team
Our Exhibition:
Dental South China 2015
Our Booth number is 14.3HALL,B08.
Warmly welcome your visit!
