Bi-directional Full Height Turnstiles Single Or Double Way Optional

Bi-directional Full Height Turnstiles Single Or Double Way Optional

  • Bi-directional Full Height Turnstiles Single Or Double Way Optional
  • Bi-directional Full Height Turnstiles Single Or Double Way Optional
Bi-directional Full Height Turnstiles Single Or Double Way Optional
Product Details:
Place of Origin: China(mainland)
Brand Name: RS Security
Certification: ISO,FCC,SGS,RoHS,CE
Model Number: RS 997
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1200usd
Packaging Details: wooden box
Delivery Time: 3-8workdays
Payment Terms: TT
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Series: Full Height Turnstile Product Name: Single Channel Full Height Turnstile
Model: RS 997 Brand: RS Security
Material: 304 Stainless Steel Size: 1500*1500*2200mm
High Light:

automatic systems turnstiles


security turnstile gate


Bi-directional Full Height Turnstiles Single Double Channel Turnstile Gate



Product name: Single Channel full height turnstile



Quick details:


Auto full height turnstile


waterpoof barrier gate


run smoothly full height gate


Brand Name:  RS Security


Model Number: RS 997


Application: tourist places, prison, community fitness club, school,


Material:  304 stainless steel


Size:  1630x1500x2300mm


Bi-directional access control



1. Product Descriptions:

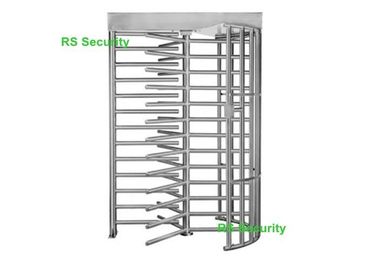

Three-arm full height turnstile: Oblong top cover; single passageway, detachable;  easy to transport.


 The housing is made of high quality stainless steel, and all the internal parts are with antirust and


antiseptic treatment, therefore, the turnstile is durable. The whole machine works stably, mute, with


low power consumption, energy conservation and environment protection.


With fully-auto structure; after turnstile receives legal signal, the arms will rotate forward a certain


angle to remind people to pass; after pushing forward the arm, the arms will start to slowly rotate at


120°to finish one passing action; turnstile works stably, safely, and reliably, And the turnstile is with


various intelligent alarm signals.


With large hinder area can achieve one time to pass one person effectively, and it's suitable to be


used at the smaller visitor flow rate and high security required occasions.


At the low-temperature environment, can be customized to install the constant temperature systems


in the turnstile according to the requirement of customers.


Provide the control software for human-machine interface and SDK protocol freely. It can achieve


batch control and debugging function conveniently and the expansibility is very strong.



2. Framework Specifications:



Framework: 304 (Standard) / 316 grade stainless steel

Thickness of Ply: 1.5mm (Standard) / 2.0mm

Finishing: Brushed surface (Standard) / Polishing surface

Arm Length: 500~700mm

Arm Diameter: 38mm (Standard) / 48mm

Max Tolerance of Arm: 30kg

Driving Force of Arm: 3kg


3. Electric Specifications:


Power Voltage: AC220V / AC85~230V

Operation Voltage: DC24V

Operation Current: 3A / 5A (Max)

Driving Motor: Brushless DC motor

Communication Interface: RS485 (1CH) /


RS232 (3CH); Available to CAN BUS and Ethernet (Optional)

Control I/O: Relay Out (6CH) / Level Input (4CH)

Transit Speed: 20~35 passage / minute

Temperature: -20C~60C

Work Environment: Indoor/ Outdoor (Shelter)

Traffic-light Indication


4.Product functions and features:


1.stainless steel machine case;

2.standard interface which easy installs external reading card equipment etc;

3.access way can be adjustable;

4.infrared detection,illegal broke in,followed alarm,anti-clipping function etc optional; emergency control the boom to rebound;

6.external dimension:2150mm×1500mm×2300mm

7.reading and writing way:IC card,ID card,mag card,bar code reader.



5. parameter





304 stainless steel

Input voltage

220V AC220±10%




Are length


Net weight



Arm diameter




24V DC brush

Cooler fan









Transit speed


30-40 people/minute

Service life

5000,000 times

Close and open time



Input interface

Relay signal, 12V level



Clear passage width



Work environment

Indoor and outdoor



Number of led lamp




RS 997



6.Competitive Advantage:


We are a leading manufacturer of turnstile and speed gate in China.


We focus on pedestrian turnstile gates.


We keep stock for regular products and we can support small orders. Usually, our lead time is just


3 days.


Design products according to customers’ requirements.


Credibility: We are SGS certificated Supplier. Our customers are located over 50 countries


Gratitude: We cherish the business chance you give us and return you with quality products and


good service.


Professional: We have been in this business for more than 8 years. We have a strong professional


team with various experiences.


We keep doing new product development. Our goal is to enhance our competitive capacity




Price: very competitive price and good quality products


Quality: we do 100% inspection before the shipment.


Promise: we are always ready to take the responsibility if any loss caused to our customer due to


our mistakes.
