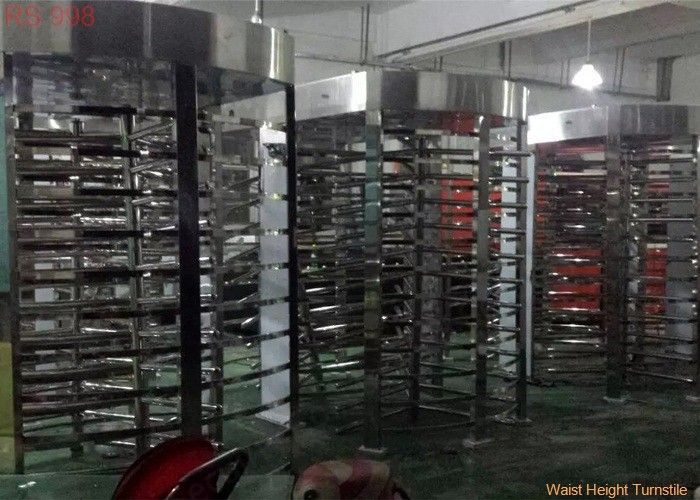

Appearance Rust-proof Full Height Turnstile For Library Entrance Managerment



Appearance Rust-proof Full Height Turnstile For Library Entrance Managerment

Model;RS 998

1. RS Security  brandnew electronical locks;

2. use world's advanced tech smart passage turnstile

3.intelligent gate barrier



full height turnsitle,turnstile,turnstiles.access control,traffc barrier,tripod turnstile,access



control,barrier gate. secrity barrier.roadway barrier,time attendance

Product Descriptons:

Full Height Turnstile developed by RS Security is available for any area which needs a high level of



security without persons to monitor.


The machine is well designed to be rustproof, durable and able to resist external destroy.


Full Height Turnstile is normally designed to be Semi-Automatic Type, but we can also provide Full



Automatic Type and Manual Type for customization.


Full Height Turnstile with 3-arm obstacle: The center rotor rotates 120 degrees per time, and it



offers a comfortable space for users.


Full Height Turnstile with 4-arm obstacle: The center rotor rotates 90 degrees per time, and it offers



a higher level of security but less space for users.


This series has 3-arm obstacle.


Function Specifications:


Both directions can be set as controlled mode or free mode.


NO mode & NC mode can be switched over by users easily & freely.


Self-recovery function: The machine will recovery automatically with invalid counting if passage is



not completed within pre-set time (5 seconds default, adjustable by software).


With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse



signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access



controllers.


Each machine can be set by Physical Address (Optional).


Equipped with free control software for man-machine interface & control command SDK.



Benefits & Features :

1. Turnstile can be released in emergency by emergency button or electricity cutoff to ensure



personnel safety.


2. Elegant and solid equipment can effectively prevent unauthorized person from intruding. It can be



used in unsupervised places.


3. Antireverse rotation function: when turnstile rotates for 60° in reverse direction, make sure each



authentication only allow one person to pass.


4. Two-way passing, one-way passing and other modes can be shifted freely according to the



demands of different time periods.



Customized Features:


Alternative Materials, Finishes and Custom Design


Access control System Integration


Ticket System Integration


Camera System Integration


Thermostat System Integration


Remote-Controlled Button


Usage Counters


Waterproof and Dustproof Design: IP65





Technical Data :


Voltage : AC220V,50HZ


Control circuit : DC24V


Power consumption : 100W


Signal output: relay or 12v pulse


Material : 304 stainless steel


S/S thickness : 1.0~1.5mm


Surrounding Temp : -25~+70


Hydraulic damper : adjustable


Dimension : 2600x1438x2310mm


Humidity : 95%


Protection level : IP55


Entry passage width : 650mm


1	Model Item	RS 999
2	Voltage	AC  220V/110V± 10%
3	Frequency	50/60Hz
4	Current	3A
5	Control  circuit:	DC24V
6	Power  consumption	40W
7	Working  temperature	-20° C~60° C
8	Working  humidity	0~95%RH
9	Maximum  bearing  capacity	80kgs
10	Bar  length	550mm
11	Voltage	AC 220V/110V±10%
12	Frequency	50/60Hz
13	Current	3A
14	Control circuit	DC24V
15	Power consumption	40W
16	Working temperature	-20°C~60°C
17	Working humidity	0~95%RH
18	Maximum bearing capacity	80kgs
