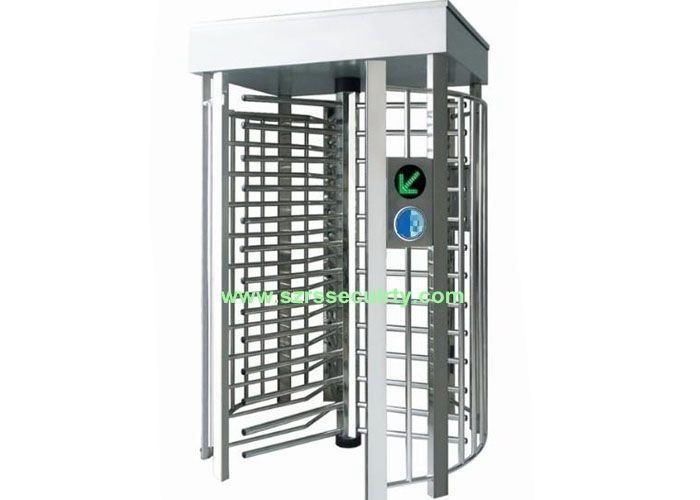

Electronic Security Single Full Height Turnstiles For Indoor Library

Electronic Security Single Full Height Turnstiles For Indoor Library

  • Electronic Security Single Full Height Turnstiles For Indoor Library
  • Electronic Security Single Full Height Turnstiles For Indoor Library
Electronic Security Single Full Height Turnstiles For Indoor Library
Product Details:
Place of Origin: China(mainland)
Brand Name: RS Security
Certification: ISO,FCC,SGS,RoHS,CE
Model Number: RS 996
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 10000USD
Packaging Details: wooden box
Delivery Time: 3-8workdays
Payment Terms: TT
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Series: Full Height Turnstile Product Name: Remote Control Full Height Turnstile
Model: RS 996 Brand: RS Security
Material: 304 Stainless Steel Size: 1630x1500x2300mm
High Light:

automatic systems turnstiles


security turnstile gate

Electronic Security Single Full Height Turnstiles For Indoor Library


full height turnstile,full height turnstile,access control,traffic barrier ,parking system

Product Name: waterproof full height turnstiles

RS 996

1.Steel cut by laser;

2.The least welding portion polished properly;

3.Original finish kept;

4.Instrusion and safety

aeppearance,rust-proof,run smoothly


Technical parameter:


1.Frame :304 Stainless steel




3.Size:1500(W)*1630(L)*2310(H)mm(Size can be customized )


4.Drive: Manually operation


5.Rotation Direction : A. Bi-Directional B. Unidirectional


6.Controller:Adopt micro-computer controller can be 7.programmed according to customer needs


7.Interface: Standard input and output interfaces can be used for other integration systems


8.Signal Source: A. Dry contact B. High-low-level signals


9.Roller working Power: AC220V±10%


10.Power Supply: AC220V±10% DC24V3A±10% DC12V3A±10%


11.Environment: Indoor/Out door Temperature:-30°C -- 80°C Humidity :5% --- 95%


12.Switching Time: 1s


13.Traffic Speed: 30 person per Minute


14.Fault Status: power-off and Giving a free exit/entry path


15.Movement failure rate: 500 million trouble-free


16.Frame Protection: Waterproof Seal


17.Card Reader Location: 4


18.Installation and maintenance Access: 1


19.Optional Feature:IC/ID reader , Barcode Reader ,other R/W equipment, UPS, Infrared detector


1. Single/double walkway---controlled in one direction or both

2. A valid lock action can allow one passage at one time Normally open---the machine will unlock when a valid signal is received

3. It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be adjusted via parameter change.


4.All the system runs stable with little noise and no mechanical impact
standard port-RS485

5.Control panel with count and LED digital function

6.Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing

7.situations where need single-direction control such as market club film theatre gymnasium subway airport customs and etc. It can be divided into Vertical


8.Emergency configuration: The tripod will drop automatically by power off or by hand to provide a clear walkway for escape in the event of an emergency.


All turnstile models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation, traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232 line. The unique dropping arm feature provides a fail-safe safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The turnstile creates a secure environment in, for example, a reception area. Our turnstiles are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.
