tripod turnstile

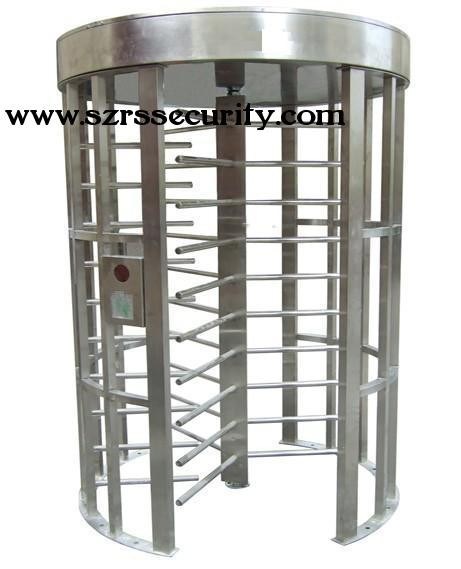

~Product name: Full-height turnstiles
Model: RS997
The full-height turnstile, is a larger version of the turnstile, which eliminates the possibility (inherent in the waist-high style) of anyone jumping over the turnstile. It is also known as an "iron maiden", or "high-wheel".It is sometimes called a "Rotogate", There are two types of full height turnstiles, High Entrance/Exit Turnstile or HEET and Exit-Only. The difference between them is that HEET turnstiles can rotate in both directions, thus allowing two-way traffic, while exit-only turnstiles can only rotate in one direction, thus allowing one-way traffic. Exit-only turnstiles are commonly used in mass transit stations to allow passengers to exit the system without interfering with those entering.
Specifications
 Framework: stainless steel tube 304# SS
 Dimension: 1500*1500*2350MM
 Barrier opening time: 0.2 second
 Transit speed: 30/minute
 Temperature: 10-℃ ～ 50℃,
 Relative humidity: ≤90%, no condensation
 communication port: standard RS485, distance≤1200meters
 Input port: dry contact, or +12v level signal, or DC12V pulse signal with its pulse width ≥100ms, drive current≥10mA.
Features

 Passing direction: one-way or two-way. Several working methods available,
 Card in, card out, card in, free exit, free in, card exit. .
 Automatic reset function: Lock automatically if people do not pass within the preset time. passing time is adjustable
 Unique bi-direction anti-rotation function,
 Passable on power failure
 Lighting notice: passing direction indication
 Control board has counting function and LED display function (optional)
 Control board has memory function to meet group passing.
 Adopt optics hole location working principle, has no time delay
 Demand for inputting control signal
 Working environment: indoor, outdoor (shelter)
 Size of card reading window: equipped with standard installing holder, or customized
Remarks: there would be a little discrepancy between real product and sample
