Place of Origin: | China(mainland) |
Brand Name: | RS Security |
Certification: | ISO,FCC,SGS,RoHS,CE |
Model Number: | RS 998 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | 1200usd |
Packaging Details: | wooden box |
Delivery Time: | 3-8workdays |
Payment Terms: | TT |
Supply Ability: | 3000pcs/month |

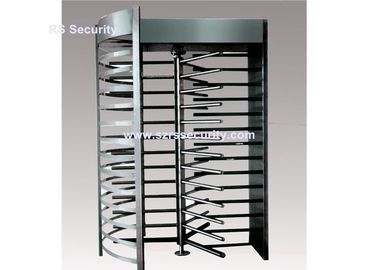

Series: | Full Height Turnstile | Product Name: | Remote Control Full Height Turnstile |
---|---|---|---|
Model: | RS 998 | Brand: | RS Security |
Material: | 304 Stainless Steel | Size: | 1630x1500x2300mm |
Highlight: | automatic systems turnstiles |
Functions & Features
1. Compatible with several control devices IC, ID, magcard, bar code
2. Unlocking is quick and reliable.
3. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.
4. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.
5. The centre rotor will be set free (default) or locked (optional) automatically when the power is off.
6. Emergency-escape function: The centre rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off.
7. Counting Function of the controller, LED figure display function (optional)
8. Memory Function attached in the controller
9. With standard input, output interface.
Decripition
1. Turnstile can be released in emergency by emergency button or electricity cutoff to ensure personnel safety.
2. Elegant and solid equipment can effectively prevent unauthorized person from intruding. It can be used in unsupervised places.
3. Antireverse rotation function: when turnstile rotates for 60° in reverse direction, make sure each authentication only allow one person to pass.
4. Two-way passing, one-way passing and other modes can be shifted freely according to the demands of different time periods.
Parameter
Model Item | RS 996 | RS 995 | RS 997 | RS 998 | RS 999 | RS 999-1 |
Material of Housing | 201 / 304 Stainless Steel | |||||
Thickness of Housing | 2.00mm | |||||
Dimension of Housing (L× W× H mm) |
1630× 1500× 2300 | 1400× 1200× 2300 | 1630× 1500× 2300 | 2800× 1813× 2400 | 2150× 1260× 2300 | 2210× 1500× 2300 |
Length of Pole (out of framework) |
610mm | 470mm | 510mm | 610mm | 470mm | 610mm |
Net Weight | 170kg | 250kg | 230kg | 650kg | 560kg | 650kg |
Max Load-bearing of Pole | 80kg | 30kg | 80kg | 80kg | 30kg | 80kg |
Driving Force of Pole | 3kg | |||||
Produce Processing | Laser cutting fully controlled by computer | |||||
Power Supply | 220V± 10%, 110V± 10% | |||||
Frequency | 50/60HZ | |||||
Transmission of Pole | Digital Transmission | |||||
Light Indicator | Direction indicating | |||||
Rotating Direction | Single Direction, Double Direction (optional) | |||||
Time for Opening | 0.2 second | |||||
Communication Interface | Standard RS485 (distance less than 1200 meters) | |||||
Input Interface | Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V | |||||
Transit Speed | 30~40 persons/min | |||||
Working Environment | Indoor / Outdoor (Shelter) | |||||
Working Temperature | 10° C~50° C | |||||
Relative Humidity | ≤ 90%, no condensation |
